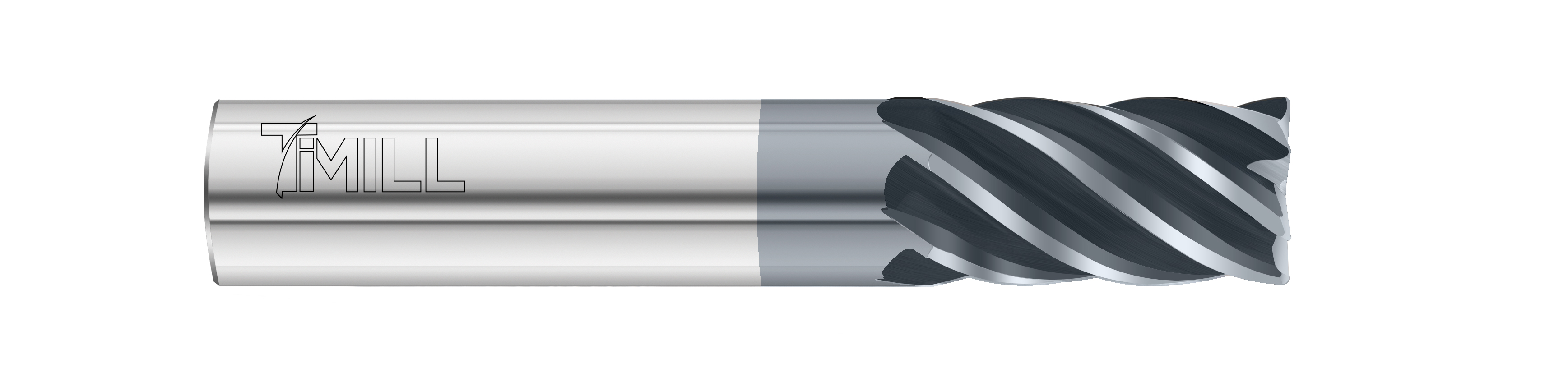

Fullerton Tool 29121 | 5/8" Diameter x 5/8" Shank x 1-1/2" LOC x 3-1/2" OAL 6 Flute FC13 Solid Carbide Corner Radius End Mill

$161.36 $158.13
(You save $3.23)
Ships:
From Partner Facility
Brand:
Fullerton Tool
Mill Diameter (Inch):
5/8"
Mill Diameter (Decimal Inch):
0.6250"
Mill Diameter (mm):
15.88mm
Number of Flutes:
6
End Type:
Corner Radius
Corner Radius (mm):
0.76mm
Length of Cut (Inch):
1-1/2"
Length of Cut (Decimal Inch):
1.5000"
Length of Cut (mm):
38.10mm
Material:
Solid Carbide
Finish/Coating:
FC13
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6250"
Shank Diameter (mm):
15.88mm
Application:
Titanium
Single or Double End:
Single
Overall Length (Inch):
3-1/2"
Overall Length (Decimal Inch):
3.5000"
Overall Length (mm):
88.90mm
Series:
3116 TiMill
Ships:
From Partner Facility
interval quantity:
1
SKU:
25174631
UPC:
Weight:
0.46 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Fullerton Tool 29121 | 5/8" Diameter x 5/8" Shank x 1-1/2" LOC x 3-1/2" OAL 6 Flute FC13 Solid Carbide Corner Radius End Mill

Features

  • The 3116 TiMill is a 6-flute, high performance end mill designed to excel in difficult to machine materials like titanium
  • Its increased core increases strength and stability in-cut, as well produces improved surface finishes, higher quality parts, and stable cutting permitting more aggressive feeds and speeds
  • The 3116 TiMill is stocked with FC-13 coating

Product Specifications
Mill Diameter (Inch) 5/8"
Cutting Flute Length (Inch) 1-1/2"
Shank Diameter (Inch) 5/8"
Overall Length (Inch) 3-1/2"
Mill Diameter (Decimal Inch) 0.6250"
Cutting Flute Length (Decimal Inch) 1.5000"
Shank Diameter (Decimal Inch) 0.6250"
Overall Length (Decimal Inch) 3.5000"
Mill Diameter (mm) 15.88mm
Cutting Flute Length (mm) 38.10mm
Shank Diameter (mm) 15.88mm
Overall Length (mm) 88.90mm
Radius (mm) 0.76mm
Finish/Coating FC13
Number of Flutes 6
Helix Angle 38 Degree
Flute Spiral Direction Right Hand Spiral
Cutting Direction Right Hand Cutting
Coolant Thorugh (Yes/No) No
