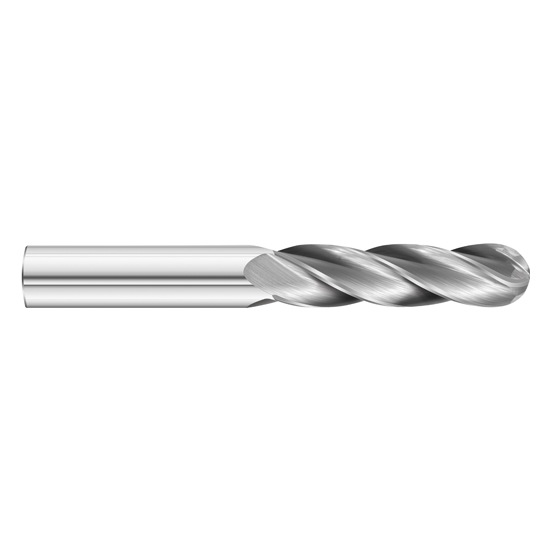

Fullerton Tool 30241 | 1/2" Diameter x 1/2" Shank x 1-1/4" LOC x 3" OAL 4 Flute Uncoated Solid Carbide Ball End Mill

$84.93 $53.51
(You save $31.42)
Ships:
From Partner Facility
Brand:
Fullerton Tool
Mill Diameter (Inch):
1/2"
Number of Flutes:
4
Length of Cut (Inch):
1-1/4"
Length of Cut (Decimal Inch):
1.2500"
Length of Cut (mm):
31.75mm
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.70mm
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3"
Overall Length (mm):
76.20mm
Material:
Solid Carbide
Finish/Coating:
Uncoated
Single or Double End:
Single
Ships:
From Partner Facility
SKU:
25000955
UPC:
Weight:
0.60 LBS
Shipping:
Calculated at Checkout
Fullerton Tool 30241 | 1/2" Diameter x 1/2" Shank x 1-1/4" LOC x 3" OAL 4 Flute Uncoated Solid Carbide Ball End Mill

Features

  • The 3200 General Purpose end mill has 4-flutes and was designed for use in titanium, super alloys, hardened steels, stainless steels, steels, cast iron, brass & copper, and low si aluminum
  • It is offered in a variety of configurations and is available with single-end and double-end designs
  • The 3200 General Purpose end mill is stocked uncoated and with FC-20, TiAlN, TiCN, and TiN coatings

Product Specifications
Cutting Diameter (Decimal Inch) 0.5000"
Cutting Diameter (mm) 12.70mm
Cutting Diameter (Inch) 1/2"
Cutting Flute Length (Decimal Inch) 1.2500"
Cutting Flute Length (mm) 31.75mm
Cutting Flute Length (Inch) 1-1/4"
Shank Diameter (Decimal Inch) 0.5000"
Shank Diameter (mm) 12.70mm
Shank Diameter (Inch) 1/2"
Overall Length (Decimal Inch) 3.0000"
Overall Length (mm) 76.20mm
Overall Length (Inch) 3"
Coating/Finish Uncoated
Metric/Inch Inch
Number of Flutes 4
Helix Angle (Degrees) 30
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Ball
End Type Character Designation B
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Extra Long
Length Designator XL
