Features

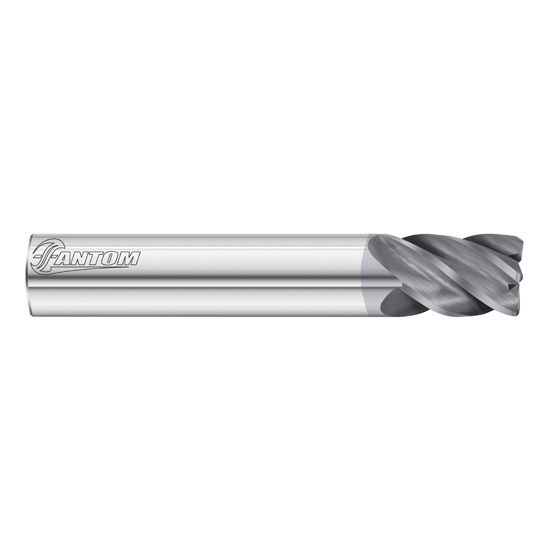

- The 3410 Fantom is a 5-flute, high performance end mill designed to excel in difficult to machine materials like steels, stainless steels, super alloys, and titanium
- Its variable index and eccentric relief provide a stable, robust cutter that allows heavier chip loads and produces superior part finishes
- The 3410 Fantom is stocked with FC-18 coating
Product Specifications
| Cutting Diameter (Decimal Inch) | 0.5000" |
| Cutting Diameter (mm) | 12.70mm |
| Cutting Diameter (Inch) | 1/2" |
| Cutting Flute Length (Decimal Inch) | 0.6250" |
| Cutting Flute Length (mm) | 15.88mm |
| Cutting Flute Length (Inch) | 5/8" |
| Shank Diameter (Decimal Inch) | 0.5000" |
| Shank Diameter (mm) | 12.70mm |
| Shank Diameter (Inch) | 1/2" |
| Overall Length (Decimal Inch) | 3.0000" |
| Overall Length (mm) | 76.20mm |
| Overall Length (Inch) | 3" |
| Coating/Finish | FC18 |
| Metric/Inch | Inch |
| Number of Flutes | 5 |
| Helix Angle (Degrees) | 40 |
| Flute Spiral Direction | Right Hand |
| Direction of Cut | Right Hand |
| Point End Type | Corner Radius |
| End Type Character Designation | R |
| Radius (Decimal Inch) | 0.0300" |
| Radius (mm) | 0.76mm |
| End Type | Single End |
| Coolant Through | Non Coolant Through |
| Weldon Flat | No |
| Length | Stub |
| Length Designator | STB |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Fullerton Tool
Mill Diameter (Inch):
1/2"
Number of Flutes:
5
Length of Cut (Inch):
5/8"
Length of Cut (Decimal Inch):
0.6250"
Length of Cut (mm):
15.88mm
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.70mm
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3"
Overall Length (mm):
76.20mm
Material:
Solid Carbide
Finish/Coating:
FC18
Single or Double End:
Single
Series:
3410 Fantom
Ships:
From Partner Facility
interval quantity:
1
