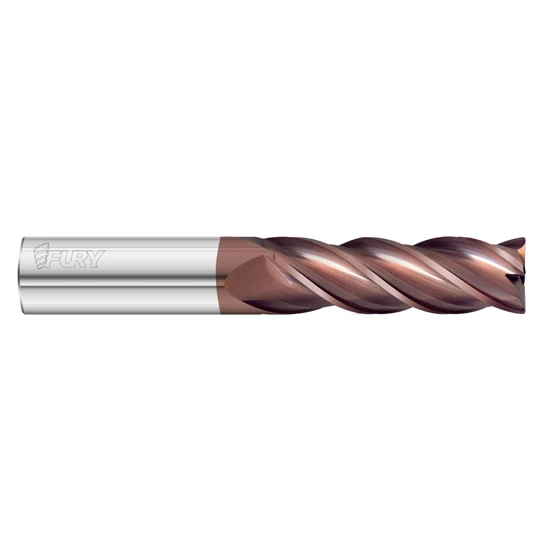

Fullerton Tool 35244 | 5/8" Diameter x 5/8" Shank x 2" LOC x 4" OAL 4 Flute FC20 Solid Carbide Radius End Mill

$160.09 $156.89
(You save $3.20)
Ships:
From Partner Facility
Brand:
Fullerton Tool
Mill Diameter (Inch):
5/8"
Number of Flutes:
4
Length of Cut (Inch):
2"
Length of Cut (Decimal Inch):
2"
Length of Cut (mm):
50.80mm
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6250"
Shank Diameter (mm):
15.88mm
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4"
Overall Length (mm):
101.60mm
Material:
Solid Carbide
Finish/Coating:
FC20
Single or Double End:
Single
Series:
3500 Fury
Ships:
From Partner Facility
interval quantity:
1
SKU:
25002631
UPC:
Weight:
0.52 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Fullerton Tool 35244 | 5/8" Diameter x 5/8" Shank x 2" LOC x 4" OAL 4 Flute FC20 Solid Carbide Radius End Mill

Features

  • The 3500 Fury is a 4-flute, high performance end mill that excels in stainless steels, super alloys, and titanium
  • It performs exceptionally in high-speed machining and full diameter milling as well as produces excellent surface finishes
  • Its tool versatility results in increased productivity, less tool changes, and longer tool life
  • The 3500 Fury is stocked with FC-20 coating

Product Specifications
Cutting Diameter (Decimal Inch) 0.6250"
Cutting Diameter (mm) 15.88mm
Cutting Diameter (Inch) 5/8"
Cutting Flute Length (Decimal Inch) 2.0000"
Cutting Flute Length (mm) 50.80mm
Cutting Flute Length (Inch) 2"
Shank Diameter (Decimal Inch) 0.6250"
Shank Diameter (mm) 15.88mm
Shank Diameter (Inch) 5/8"
Overall Length (Decimal Inch) 4.0000"
Overall Length (mm) 101.60mm
Overall Length (Inch) 4"
Coating/Finish FC20
Metric/Inch Inch
Number of Flutes 4
Helix Angle (Degrees) Variable
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Corner Radius
End Type Character Designation R
Radius (Decimal Inch) 0.0300"
Radius (mm) 0.76mm
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Extra Long
Length Designator XL
