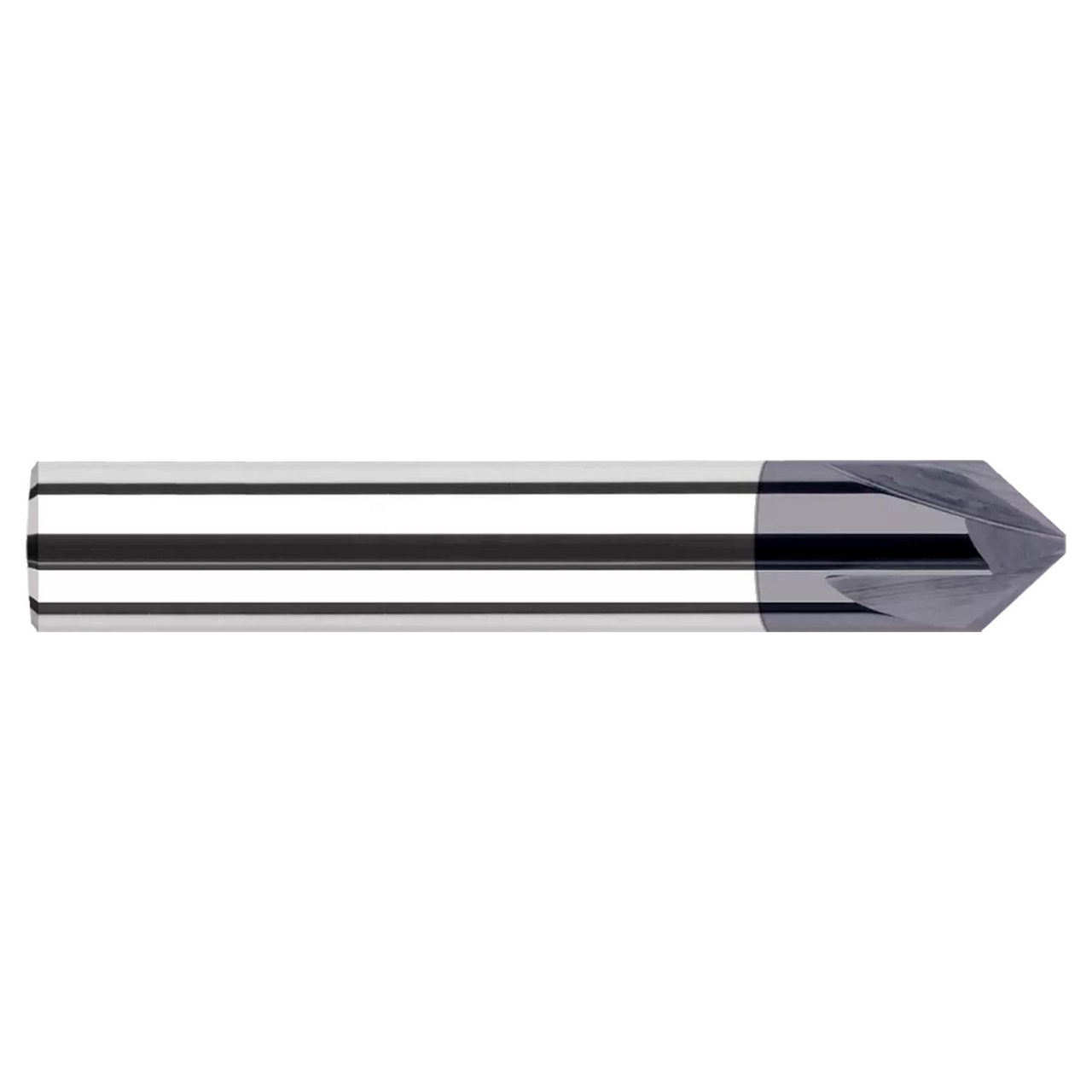

Harvey Tool's offering of pointed and flat end Chamfer Cutters has been engineered in three different styles: pointed, which is great for chamfering and deburring in small and narrow areas; and flat, which is non-end cutting, and optimized for profiling and chamfering larger features. End cutting which is great for blending the floor and a chamfered wall in one pass.
- Flat End - (non-cutting) multi-flute design improves tool life and finish for profiling and chamfering larger features
- CNC ground in the USA
Product Specifications
| Tool Number | 18330-C8 |
| Length of Cut (Inch) | 0.3640" |
| Overall Length (Inch) | 3.0000" (3) |
| Tip (Inch) | 0.0800" |
| Angle per Side | 30 |
| Included Angle | 60 |
| Flutes | 4 |
| Type | II |
| Shank Diameter (Inch) | 0.5000" (1/2) |
| Coating | C8 |
| Center Cutting | N |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Length of Cut (Decimal Inch):
0.3640"
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Included Angle:
60 Degree
Number of Flutes:
4
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.70mm
Finish/Coating:
C8
interval quantity:
1
