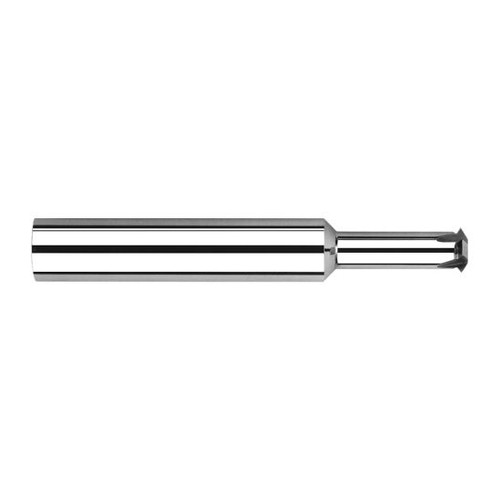

Harvey Tool 71090 | Thread 0.6200" Diameter 6FL 60 Degree Incuded Angle Uncoated Coated Carbide Single Profile Thread Mill

$173.70
Ships:
From Partner Facility
Brand:
Harvey Tool
Cutter Diameter (Decimal Inch):
0.6200"
Max Depth of Thread (Inch):
1-5/16"
Max Depth of Thread (Decimal Inch):
1.3120"
Number of Flutes:
6
Material:
Carbide
Finish/Coating:
Uncoated
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6250"
Overall Length (Inch):
3-1/2"
Ships:
From Partner Facility
SKU:
25120337
UPC:
Weight:
0.56 LBS
Shipping:
Free Shipping
Harvey Tool 71090 | Thread 0.6200" Diameter 6FL 60 Degree Incuded Angle Uncoated Coated Carbide Single Profile Thread Mill
Features
  • Single thread form - can mill any pitch
  • Cuts internal and external 60 Degree UN threads
  • Mills right hand and left hand threads
  • Tip of included angle ground to a point
  • Solid carbide
  • CNC ground in the USA
Product Specifications
Milling Diameter (Decimal Inch) 0.6200"
Max Depth of Thread (Inch) 1-5/16"
Max Depth of Thread (Decimal Inch) 1.3120"
Number of Flutes 6
Finish/Coating Uncoated
Included Angle 60 Degree
Shank Diameter (Inch) 5/8"
Shank Diameter (Decimal Inch) 0.6250"
Overall Length (Inch) 3-1/2"
Overall Length (Decimal Inch) 3.5000"
Neck Diameter (Decimal Inch) 0.4200"
Length of Cut (Decimal Inch) 0.1150"
Angle Per Side 30 Degrees

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
