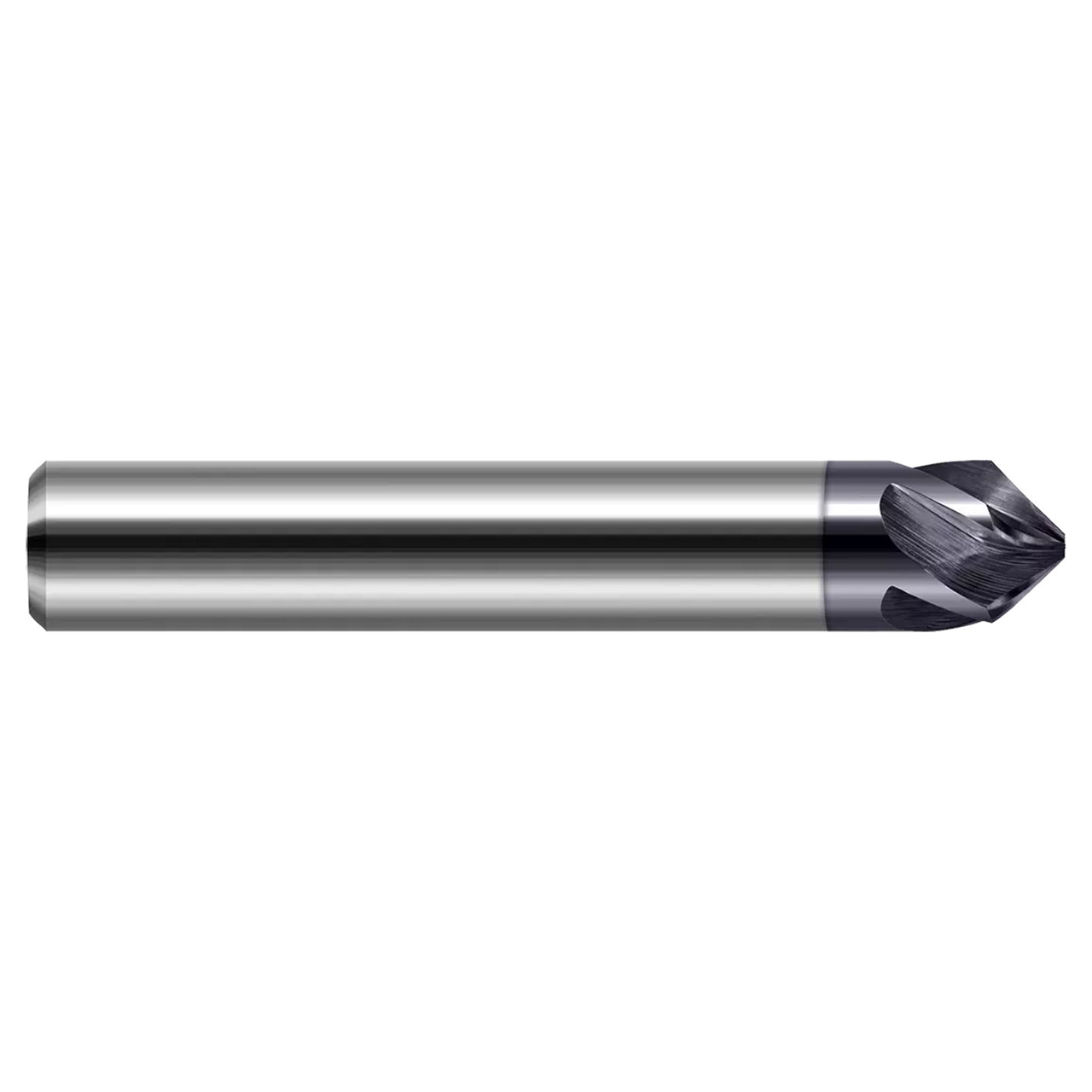

This Harvey Tool offering of chamfer cutters - pointed & flat end - helical flutes are stocked in styles with between 2 and 5 flutes and 6 angles per side, ranging from 15 Degree to 60 Degree, allowing for superior performance in both pointed and flat end styles.
Features- Specialized helical flute design for superior performance
- Free cutting action provides excellent surface finish and chip evacuation
- Offered in Type I pointed, Type II flat end (non-cutting) styles and Type III end cutting
- 2, 3, 4, and 5, flute options
- h6 shank tolerance for high precision tool holders
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | 738224 |
| Length of Cut (Inch) | 0.1530" |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Tip (Inch) | 0.0700" |
| Shank Diameter (Inch) | 0.3750" (3/8) |
| Angle per Side | 41 Degree |
| Included Angle | 82 Degree |
| Number of Flutes | 5 |
| Coating | Uncoated |
| Type | II |
| Profile | Flat |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Length of Cut (Decimal Inch):
0.1530"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Included Angle:
82 Degree
Number of Flutes:
5
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Finish/Coating:
Uncoated
