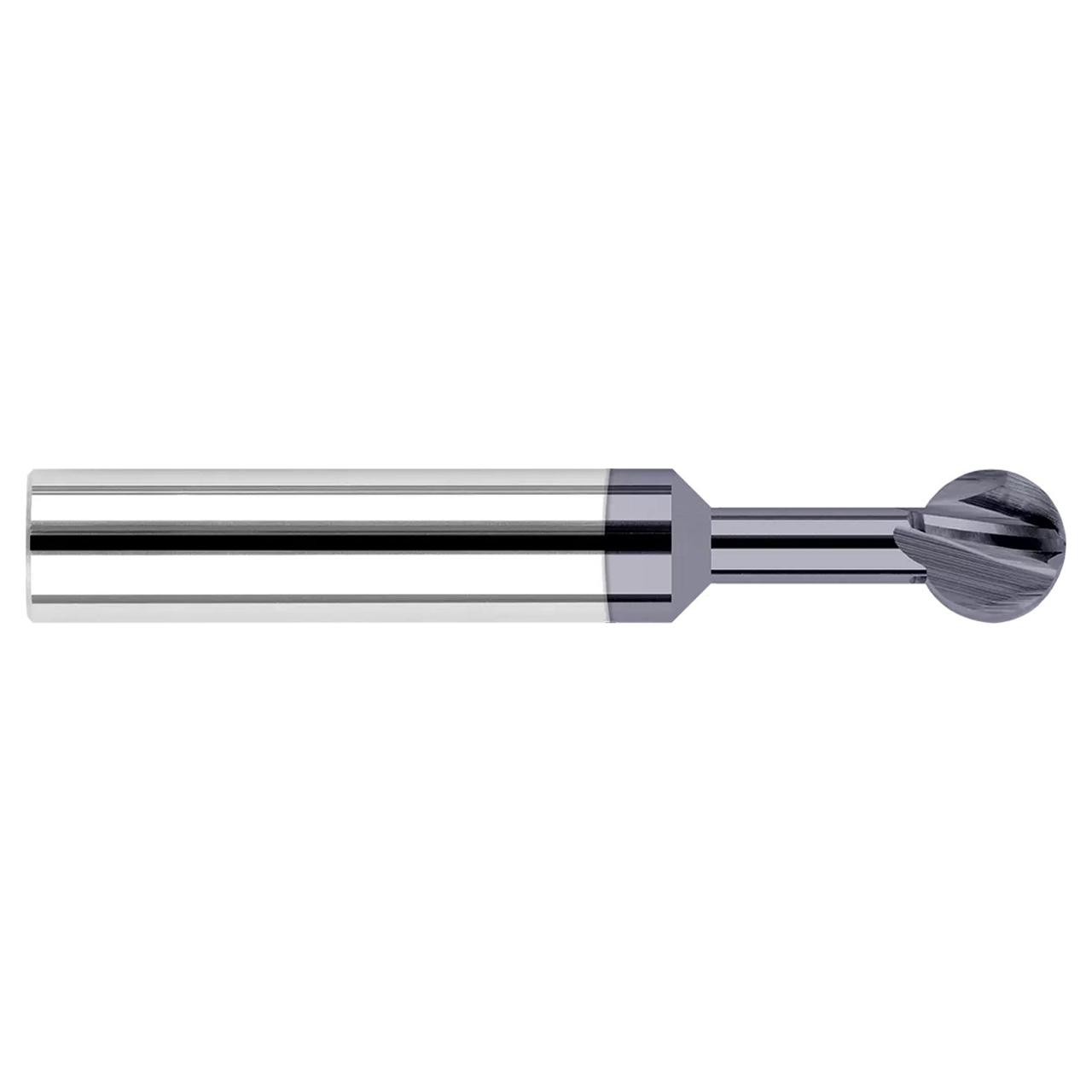

Ideal for undercutting, deburring, and profiling, this 300° spherical ball
- Designed for undercutting, deburring and multi-axis machining
- CNC ground in the USA
- 300° spherical ball
- Center cutting
- Solid carbide
Product Specifications
| Tool Number | 738616 |
| Cutter Diameter (Inch) | 0.2500" (1/4) |
| Neck Diameter (Inch) | 0.1120" |
| Length of Cut (Inch) | 0.2330" |
| Neck Length (Inch) | 0.4370" (7/16) |
| Overall Reach (Inch) | 0.6700" |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Radius (Inch) | 0.1250" (1/8) |
| Wrap Angle | 300 |
| Flutes | 4 |
| Shank Diameter (Inch) | 0.2500" (1/4) |
| Coating | Uncoated |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Cutter Diameter (Inch):
1/4"
Cutter Diameter (Decimal Inch):
0.2500"
Neck Diameter (Decimal Inch):
0.1120"
Radius (Inch):
1/8"
Radius (Decimal Inch):
0.1250"
Number of Flutes:
4
Length of Cut (Decimal Inch):
0.2330"
Neck Length (Inch):
7/16"
Neck Length (Decimal Inch):
0.4370"
Overall Reach (Decimal Inch):
0.6700"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Finish/Coating:
Uncoated
interval quantity:
1
