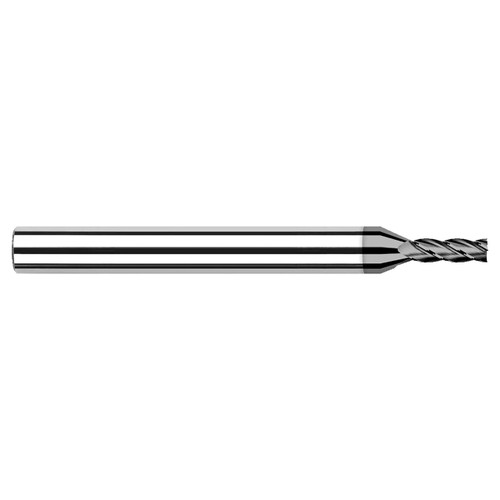

This CVD diamond coated End Mill, ideal for machining graphite and composites, green carbide, and green ceramics, is ideal for machining deep within a part.
- Ideal for machining graphite and composites, green carbide, and green ceramics
- True crystalline CVD diamond on solid carbide substrate
- Reduced neck for clearance and maximum rigidity
- h6 shank tolerance for high precision tool holders
- Maximum abrasion resistance increases tool life
- CNC ground in the USA
- Center cutting
- 4 flutes
Product Specifications
| Tool Number | 746308 |
| Cutter Diameter (Inch) | 0.1250" (1/8) |
| Neck Diameter (Inch) | 0.1200" |
| Length of Cut (Inch) | 0.6250" (5/8) |
| Overall Reach (Inch) | 1.0000" (1) |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Flutes | 4 |
| LOC Multiple | 5x |
| Reach Multiple | 8x |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Coating | C5 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Neck Diameter (Decimal Inch):
0.1200"
Shank Diameter (Inch):
1/8"
Length of Cut (Inch):
5/8"
Length of Cut (Decimal Inch):
0.6250"
Overall Reach (Inch):
1"
Overall Reach (Decimal Inch):
1.0000"
Number of Flutes:
4
Finish/Coating:
C5
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
