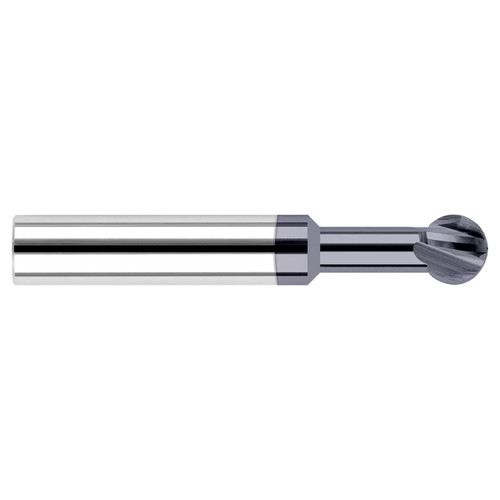

A 270° spherical ball, this fully stocked Harvey Tool product offering of center cutting Undercutting End Mills is CNC ground from solid carbide in the USA, and is designed for undercutting, deburring, and multi-axis machining.
- Designed for undercutting, deburring and multi-axis machining
- CNC ground in the USA
- 270° spherical ball
- Center cutting
- Solid carbide
Product Specifications
| Tool Number | 758516 |
| Cutter Diameter (Inch) | 0.2500" (1/4) |
| Neck Diameter (Inch) | 0.1580" |
| Length of Cut (Inch) | 0.2130" |
| Neck Length (Inch) | 0.2500" (1/4) |
| Overall Reach (Inch) | 0.4630" |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Radius (Inch) | 0.1250" (1/8) |
| Wrap Angle | 270 |
| Neck Angle | 1.5 |
| Flutes | 4 |
| Type | II |
| Shank Diameter (Inch) | 0.2500" (1/4) |
| Coating | Uncoated |
