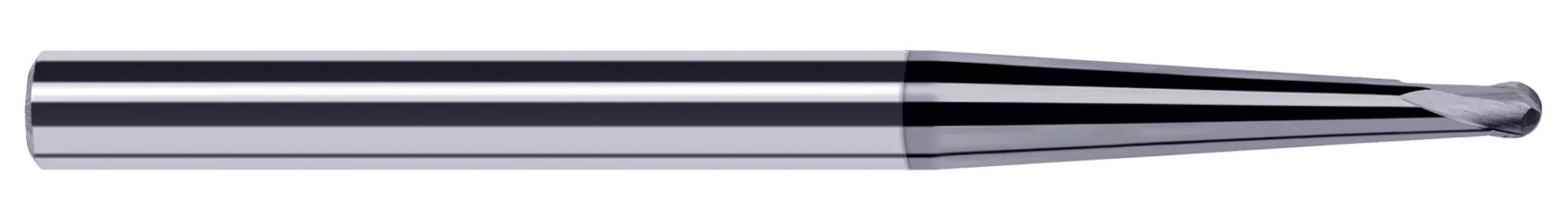

Harvey Tool 774662-C6 | 1/16" Diameter x 1/4" Shank x 0.0500" LOC x 2" OAL 2 Flute AlTiN Nano Coated Carbide Ball End Mill

$67.00
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25186702
Weight:
0.04 LBS
Shipping:
Calculated at Checkout

This line of High Helix End Mills for Medium Alloy Steels - Ball - Tapered Reach (Mold Cutters) is ideal for contour machining of mold and die cavities. Achieve superior performance in readily machinable mold steels, stainless steels, and tool steels with this fully stocked tool.

  • Excellent in Readily Machinable Mold Steels, Stainless Steels, & Tool Steels
  • Very short length of cut and solid tapered neck for maximum rigidity
  • Ideal for contour machining of mold and die cavities
  • 1 Degree, 1.5 Degree, 3 Degree, 5 Degree, and 7 Degree neck angles to address common draft angles in molds
  • 35 Degree helix for increased cutting performance
  • h6 shank tolerance for high precision tool holders
  • Latest generation AlTiN Nano coating offers superior hardness and heat resistance
  • 2 flutes to center
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch)0.0620" (1/16)
Neck Diameter (Inch)0.2210"
Length of Cut (Inch)0.0500"
Tapered Reach (Inch)0.5000" (1/2)
Overall Reach (Inch)0.5250"
Overall Length (Inch)2.0000" (2)
Number of Flutes2
Neck Angle10
LOC Multiple0.8x
TypeI
Shank Diameter (Inch)0.2500" (1/4)
Coating/FinishC6
