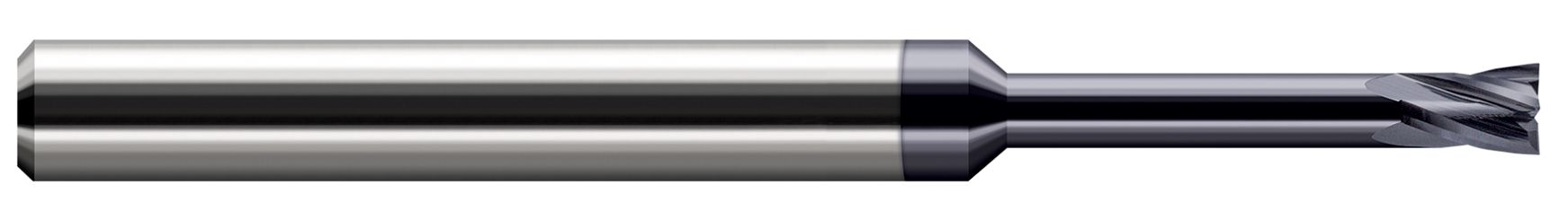

Harvey Tool 781362-C3 | 1/16" Diameter x 1/8" Shank x 3/32" LOC x 2-1/2" OAL 4 Flute AlTiN Coated Carbide Square End Mill

$55.90
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25186579
Weight:
0.03 LBS
Shipping:
Calculated at Checkout

This 4 flute, square profile offering of Backdraft Cutters is optimized for cleaning up the bottom corner of pockets, and features a backdraft angle to reduce rubbing.

  • Designed to clean up bottom corner of pockets while backdraft angle minimizes rubbing
  • 4 helical flutes (20 Degree helix)
  • Center cutting
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch)0.0620" (1/16)
Neck Diameter (Inch)0.0580"
Length of Cut (Inch)0.0930" (3/32)
Overall Reach (Inch)0.3120" (5/16)
Overall Length (Inch)2.5000" (2-1/2)
Number of Flutes4
Angle per Side0.5
Included Angle1.0
LOC Multiple1.5x
Reach Multiple5x
Shank Diameter (Inch)0.1250" (1/8)
Coating/FinishC3

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
