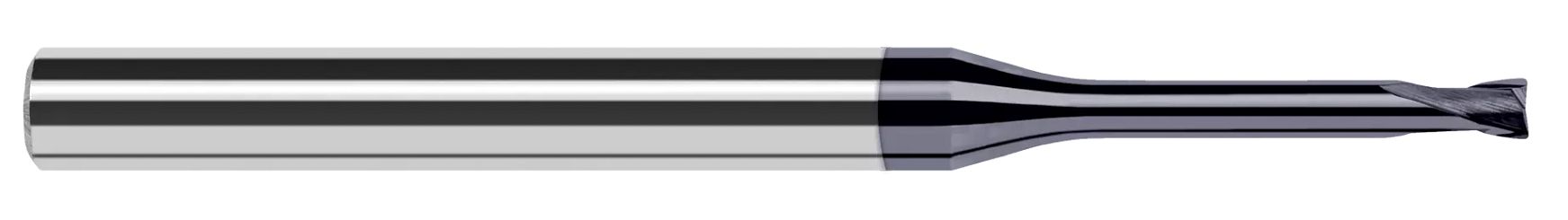

Harvey Tool 782962-C6 | 1/16" Diameter x 1/4" Shank x 0.0500" LOC x 2-1/2" OAL 0.0100" Radius 2 Flute AlTiN Nano Coated Carbide Corner Radius End Mill

$85.00
Brand:
Harvey Tool
Cutter Diameter (Inch):
1/16"
Cutter Diameter (Decimal Inch):
0.0620"
Neck Diameter (Decimal Inch):
0.0600"
Length of Cut (Decimal Inch):
0.0500"
Overall Reach (Inch):
7/16"
Overall Reach (Decimal Inch):
0.4370"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Corner Radius (Decimal Inch):
0.0100"
Number of Flutes:
2
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Finish/Coating:
C6
interval quantity:
1
SKU:
25186598
UPC:
Weight:
0.04 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
782962-C6

While excellent for stainless steel, inconel, titanium, and other high temperature alloys, this Harvey Tool offering of End Mills for Hardened Steels.

  • Designed to mill hardened tool, die, and mold steels up to 55Rc
  • Also excellent for stainless steel, inconel, titanium, and other high temperature alloys
  • 5 flute, variable helix design for improved slotting and roughing
  • Latest generation AlTiN Nano coating offers superior hardness and heat resistance
  • Increased shank diameter to maintain strength and stiffness
  • h6 shank tolerance for high precision tool holders
  • Center cutting
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch)0.0620" (1/16)
Neck Diameter (Inch)0.0600"
Length of Cut (Inch)0.0500"
Overall Reach (Inch)0.4370" (7/16)
Overall Length (Inch)2.5000" (2-1/2)
Number of Flutes2
Corner Radius0.0100"
LOC Multiple0.8x
Reach Multiple7x
Shank Diameter (Inch)0.2500" (1/4)
Coating/FinishC6
