Product Specifications

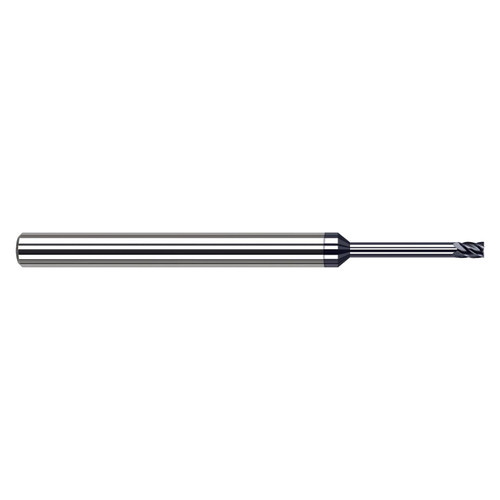

| Manufacturer Part Number | 825410-C6 |
| Cutter Diameter (Decimal Inch) | 0.156" |
| Cutter Diameter (Inch) | 5/32" |
| Neck Diameter (Decimal Inch) | 0.152" |
| Length of Cut (Decimal Inch) | 0.235" |
| Overall Reach (Decimal Inch) | 0.750" |
| Overall Reach (Inch) | 3/4" |
| Overall Length (Decimal Inch) | 3.000" |
| Overall Length (Inch) | 3" |
| Number of Flute | 5 |
| LOC Multiple | (1.5x) |
| Reach Multiple | (5x) |
| Shank Diameter (Decimal Inch) | 0.250" |
| Shank Diameter (Inch) | 1/4" |
| Metric | No |
| Coating | C6 |
| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Mill Diameter (Inch):
5/32"
Mill Diameter (Decimal Inch):
0.1560"
Mill Diameter (mm):
3.96mm
Number of Flutes:
5
Length of Cut (Inch):
15/64"
Length of Cut (Decimal Inch):
0.2350"
Length of Cut (mm):
5.97mm
Finish/Coating:
C6
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
63.35mm
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.20mm
Overall Reach (Inch):
3/4"
Overall Reach (Decimal):
0.7500"
Overall Reach (mm):
19.05mm
Interval quantity:
1
