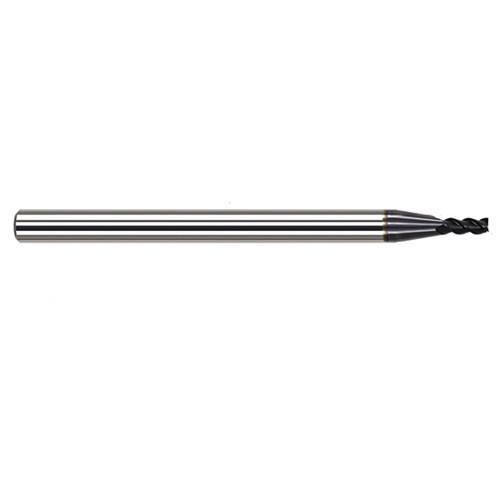

Harvey Tool 866605-C3 | 0.1180" Diameter x 1/8" Shank x 0.3540" LOC x 2" OAL 0.0100" Radius 4 Flute AlTiN Coated Carbide Corner Radius End Mill

$59.20
Brand:
Harvey Tool
Cutter Diameter (Decimal Inch):
0.1180"
Cutter Diameter (mm):
3.00mm
Neck Diameter (Decimal Inch):
0.1165"
Length of Cut (Decimal Inch):
0.3540"
Overall Reach (Decimal Inch):
0.9500"
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Corner Radius (Decimal Inch):
0.0100"
Number of Flutes:
4
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Finish/Coating:
C3
SKU:
25187131
UPC:
Weight:
0.01 LBS
Shipping:
Calculated at Checkout
866605-C3

The corner radius profile featured in this collection of Harvey Tool Miniature End Mills - Corner Radius - Stub & Standard adds strength to the tool.

  • Corner radius for improved strength
  • Center cutting
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch)0.1180" (3 mm)
Neck Diameter (Inch)0.1165"
Length of Cut (Inch)0.3540"
Overall Reach (Inch)0.9500"
Overall Length (Inch)2.0000" (2)
Number of Flutes4
Corner Radius0.0100"
LOC Multiple3x
Reach Multiple8x
Shank Diameter (Inch)0.1250" (1/8)
Coating/FinishC3

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Harvey Tool
Cutter Diameter (Decimal Inch):
0.1180"
Cutter Diameter (mm):
3.00mm
Neck Diameter (Decimal Inch):
0.1165"
Length of Cut (Decimal Inch):
0.3540"
Overall Reach (Decimal Inch):
0.9500"
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Corner Radius (Decimal Inch):
0.0100"
Number of Flutes:
4
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Finish/Coating:
C3
