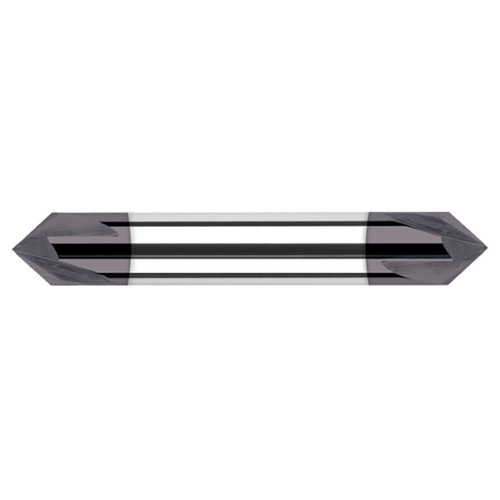

Product Specifications
| Length of Cut (Decimal Inch) | 0.0540" |
| Overall Length (Inch) | 2" |
| Overall Length (Decimal Inch) | 2.0000" |
| Tip Diameter (Decimal Inch) | 0.0100" |
| Angle per Side | 60 Degree |
| Included Angle | 120 Degree |
| Number of Flutes | 2 |
| Type | I |
| Shank Diameter (Inch) | 3/16" |
| Shank Diameter (Decimal Inch) | 0.1875" |
| Metric (Yes/No) | No |
| Center Cutting (Yes/No) | No |
| Chip Breaker (Yes/No) | No |
| Finish/Coating | AlTiN |
| Double Ended (Yes/No) | Yes |
| Weldon Flat (Yes/No) | No |
| Coolant Through (Yes/No) | No |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Included Angle:
120 Degree
Cutter Head Diameter (Inch):
3/16"
Material:
Carbide
Finish/Coating:
AlTiN
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Number of Flutes:
2
End Type:
Pointed
Ships:
From Partner Facility
