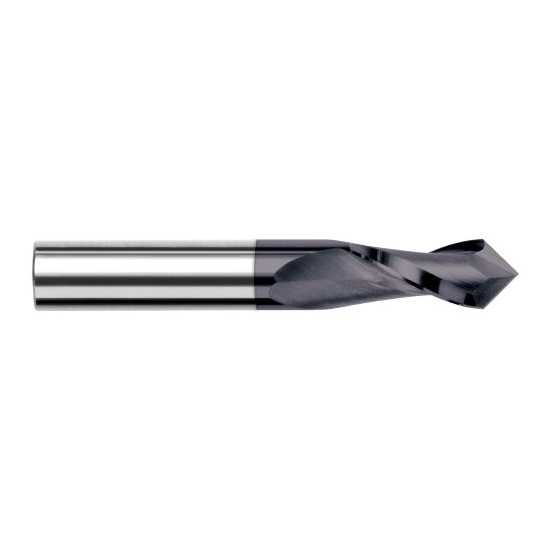

Harvey Tool 928520-C3 | 5/16" Diameter x 5/16" Shank x 13/16" LOC 100 Degree Point Angle 2FL AlTiN Coated Solid Carbide Drill Mill

$66.40
Ships:
From Partner Facility
Brand:
Harvey Tool
Material:
Solid Carbide
Point Angle:
100 Degree
Mill Diameter (Inch):
5/16"
Mill Diameter (Decimal Inch):
0.3125"
Length of Cut (Inch):
13/16"
Length of Cut (Decimal Inch):
0.8120"
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3125"
Number of Flutes:
2
Finish/Coating:
AlTiN
Ships:
From Partner Facility
SKU:
25107903
UPC:
Weight:
0.08 LBS
Shipping:
Calculated at Checkout
Product Specifications
Mill Diameter (Decimal Inch) 0.3125"
Mill Diameter (Inch) 5/16"
Length Of Cut (Decimal Inch) 0.8120"
Length Of Cut (Inch) 13/16"
Overall Length (Decimal Inch) 2.5000"
Overall Length (Inch) 2-1/2"
Angle Per Side 50 Degree
Included Angle 100 Degree
Number of Flutes 2
LOC Multiple 2x
Web Thickness (Decimal Inch) 0.0070"
Shank Diameter (Decimal Inch) 0.3125"
Shank Diameter (Inch) 5/16"
Metric No
Coating AlTiN
Center Cutting (Yes/No) No
Chip Breaker (Yes/No) No
Single or Double Angle Single
Weldon (Yes/No) No
Coolant Through (Yes/No) No
