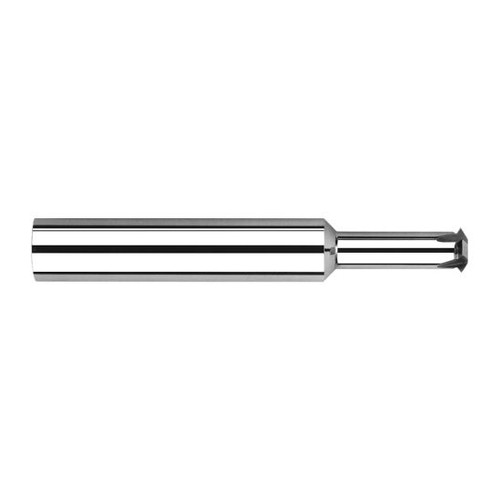

Features
- Single thread form - can mill any pitch
- Cuts internal and external 60 Degree UN threads
- Mills right hand and left hand threads
- Tip of included angle ground to a point
- Solid carbide
- CNC ground in the USA
Product Specifications
| Size | 6 |
| Milling Diameter (Decimal Inch) | 0.0980" |
| Max Depth of Thread (Inch) | 5/32" |
| Max Depth of Thread (Decimal Inch) | 0.1560" |
| Number of Flutes | 4 |
| Finish/Coating | Uncoated |
| Included Angle | 60 Degree |
| Shank Diameter (Inch) | 3/16" |
| Shank Diameter (Decimal Inch) | 0.1875" |
| Overall Length (Inch) | 2" |
| Overall Length (Decimal Inch) | 2.0000" |
| Neck Diameter (Decimal Inch) | 0.0500" |
| Length of Cut (Decimal Inch) | 0.0280" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Thread Size (Inch):
6
Cutter Diameter (Decimal Inch):
0.0980"
Max Depth of Thread (Inch):
5/32"
Max Depth of Thread (Decimal Inch):
0.1560"
Number of Flutes:
4
Material:
Carbide
Finish/Coating:
Uncoated
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Overall Length (Inch):
2"
Ships:
From Partner Facility
