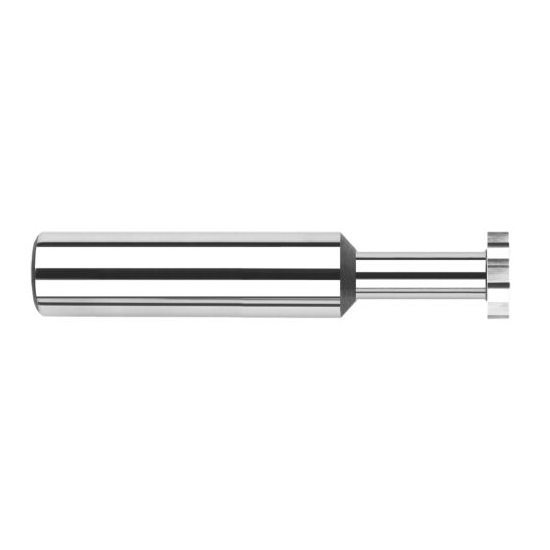

Product Specifications
| Mill Diameter (Decimal Inch) | 0.2362" |
| Neck Diameter (Decimal Inch) | 0.1180" |
| Cutter Width (Decimal Inch) | 0.1180" |
| Neck Length (Decimal Inch) | 0.3540" |
| Overall Length (Decimal Inch) | 2.5000" |
| Overall Length (Inch) | 2-1/2" |
| Radial Depth Of Cut (Decimal Inch) | 0.0490" |
| Number of Flutes | 6 |
| Reach Multiple | 1.5x |
| Type | I |
| Shank Diameter (Decimal Inch) | 0.2500" |
| Shank Diameter (Inch) | 1/4" |
| Metric | No |
| Coating | Uncoated |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Cutting Diameter (Decimal Inch):
0.2362"
Cutting Width (Decimal Inch):
0.1180"
Tooth Configuration:
Straight
Neck Length (Decimal Inch):
0.3540"
Material:
Carbide
Finish/Coating:
Uncoated
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Ships:
From Partner Facility
IsDiscontinued:
