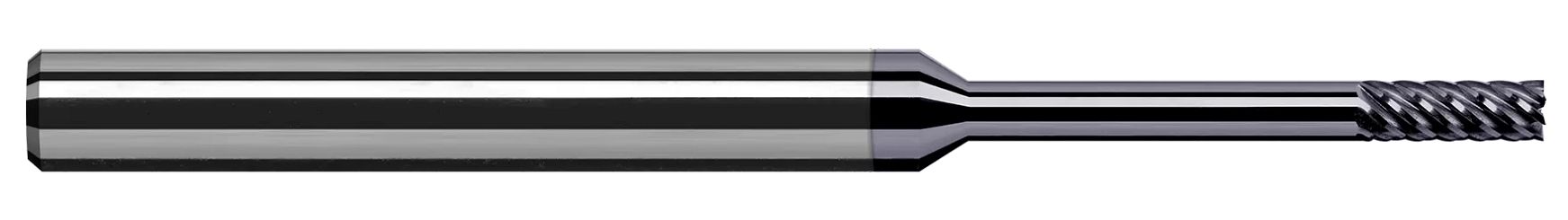

Harvey Tool 962212-C6 | 3/16" Diameter x 3/16" Shank x 0.5700" LOC x 3" OAL 7 Flute AlTiN Nano Coated Carbide Square End Mill

$63.90
Brand:
Harvey Tool
Neck Diameter (Decimal Inch):
0.1830"
Shank Diameter (Inch):
3/16"
Length of Cut (Decimal Inch):
0.5700"
Overall Reach (Inch):
1-1/2"
Overall Reach (Decimal Inch):
1.5000"
Number of Flutes:
7
Finish/Coating:
C6
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
interval quantity:
1
SKU:
25186537
UPC:
Weight:
0.05 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Optimized for titanium alloys, inconel, nickel alloys, and other high-temperature materials with outstanding performance in difficult-to-machine steels, stainless steels, and tool steels, this variable helix offering of tools.

  • Variable helix design (approx. 34 Degree) reduces chatter and harmonics and increases material removal rates
  • Latest generation AlTiN Nano coating offers superior hardness and heat resistance
  • h6 shank tolerance for high precision tool holders
  • Suitable for steels up to 45Rc
  • Center cutting
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch)0.1875" (3/16)
Neck Diameter (Inch)0.1830"
Length of Cut (Inch)0.5700"
Overall Reach (Inch)1.5000" (1-1/2)
Overall Length (Inch)3.0000" (3)
Number of Flutes7
LOC Multiple3x
Reach Multiple8x
Shank Diameter (Inch)0.1875" (3/16)
Coating/FinishC6

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
