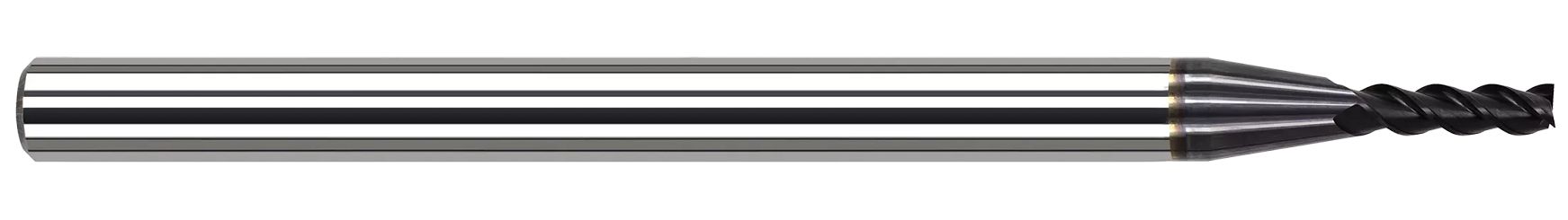

The multi-flute, high helix design of this fully stocked offering of Harvey Tool Variable Helix End Mills for Medium Alloy Steels - Finishers - Square improves finishing in carbon steels, 300 and 400 stainless steels, and machinable tool steels.
- Multi-flute, high helix (approx. 44 Degree), coated design improves finishing in carbon steels,300 and 400 stainless steels, and machinable tool steels
- Can be used in light duty roughing and profiling applications
- AlTiN Nano coating offers superior hardness and heat resistance
- h6 shank tolerance for high precision tool holders
- End cutting (not center cutting)
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.0550" (1.4 mm) |
| Length of Cut (Inch) | 0.0830" |
| Overall Length (Inch) | 1.5000" (1-1/2) |
| Number of Flutes | 3 |
| LOC Multiple | 1.5x |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Coating/Finish | C3 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Shank Diameter (Inch):
1/8"
Cutter Diameter (mm):
1.40mm
Length of Cut (Decimal Inch):
0.0830"
Number of Flutes:
3
Finish/Coating:
C3
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
interval quantity:
1
