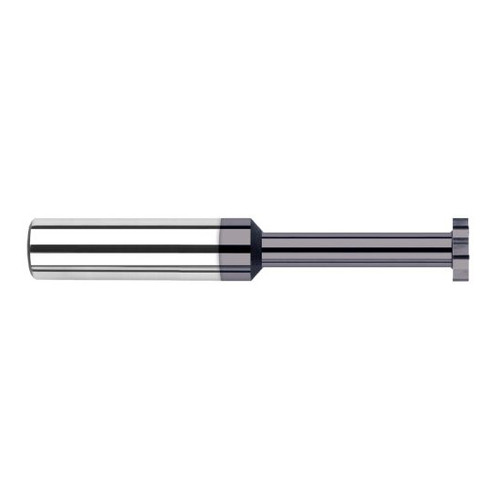

Harvey Tool 973440-C3 | 5/16" Diameter x 5/64" Cutting Width x 5/16" Shank AlTiN Coated Carbide Straight Tooth Keyseat Cutter

$93.10
Ships:
From Partner Facility
Brand:
Harvey Tool
Cutting Diameter (Inch):
5/16"
Cutting Diameter (Decimal Inch):
0.3125"
Cutting Width (Inch):
5/64"
Cutting Width (Decimal Inch):
0.0780"
Tooth Configuration:
Straight
Neck Length (Inch):
3/16"
Neck Length (Decimal Inch):
0.1870"
Material:
Carbide
Finish/Coating:
AlTiN
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3125"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Ships:
From Partner Facility
SKU:
25111911
UPC:
Weight:
0.09 LBS
Shipping:
Free Shipping
Product Specifications
Mill Diameter (Decimal Inch) 0.3125"
Mill Diameter (Inch) 5/16"
Neck Diameter (Decimal Inch) 0.1090"
Neck Diameter (Inch) 7/64"
Cutter Width (Decimal Inch) 0.0780"
Cutter Width (Inch) 5/64"
Neck Length (Decimal Inch) 0.1870"
Neck Length (Inch) 3/16"
Overall Length (Decimal Inch) 2.5000"
Overall Length (Inch) 2-1/2"
Radial Depth Of Cut (Decimal Inch) 0.0910"
Number of Flutes 6
Reach Multiple 0.5x
Type II
Shank Diameter (Decimal Inch) 0.3125"
Shank Diameter (Inch) 5/16"
Metric No
Coating AlTiN
