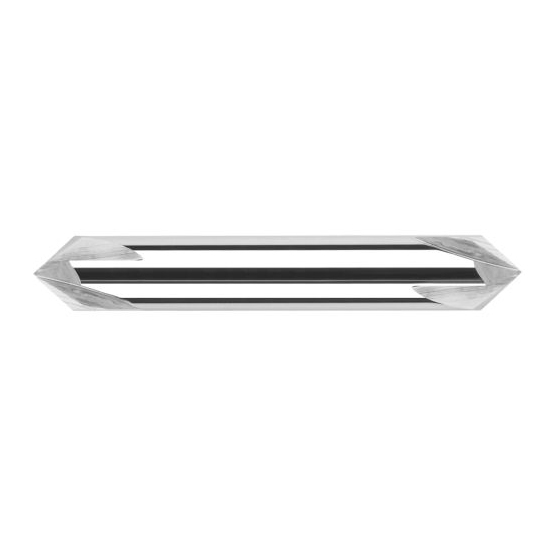

Harvey Tool 988420 | 1/8" Diameter x 1/8" Shank 40 Degree Included Angle 2FL Uncoated Solid Carbide Chamfer Mill

$40.90
Ships:
From Partner Facility
Brand:
Harvey Tool
Included Angle:
40 Degree
Cutter Head Diameter (Inch):
1/8"
Cutter Head Diameter (mm):
0.1250"
Material:
Solid Carbide
Finish/Coating:
Uncoated
Overall Length (Inch):
1-1/2"
Shank Diameter (Inch):
1/8"
Number of Flutes:
2
End Type:
Double
Ships:
From Partner Facility
SKU:
25105133
UPC:
Weight:
0.01 LBS
Shipping:
Calculated at Checkout
Harvey Tool 988420 | 1/8" Diameter x 1/8" Shank 40 Degree Included Angle 2FL Uncoated Solid Carbide Chamfer Mill
Product Specifications
Length Of Cut (Decimal Inch) 0.1720"
Length Of Cut (Inch) 11/64"
Overall Length (Decimal Inch) 1.5000"
Overall Length (Inch) 1-1/2"
Tip Diameter (Decimal Inch) 0.0100"
Angle Per Side 20 Degree
Included Angle 40 Degree
Number of Flutes 2
Type I
Shank Diameter (Decimal Inch) 0.1250"
Shank Diameter (Inch) 1/8"
Metric No
Coating Uncoated
Single or Double Angle Double

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Harvey Tool
Included Angle:
40 Degree
Cutter Head Diameter (Inch):
1/8"
Cutter Head Diameter (mm):
0.1250"
Material:
Solid Carbide
Finish/Coating:
Uncoated
Overall Length (Inch):
1-1/2"
Shank Diameter (Inch):
1/8"
Number of Flutes:
2
End Type:
Double
Ships:
From Partner Facility
