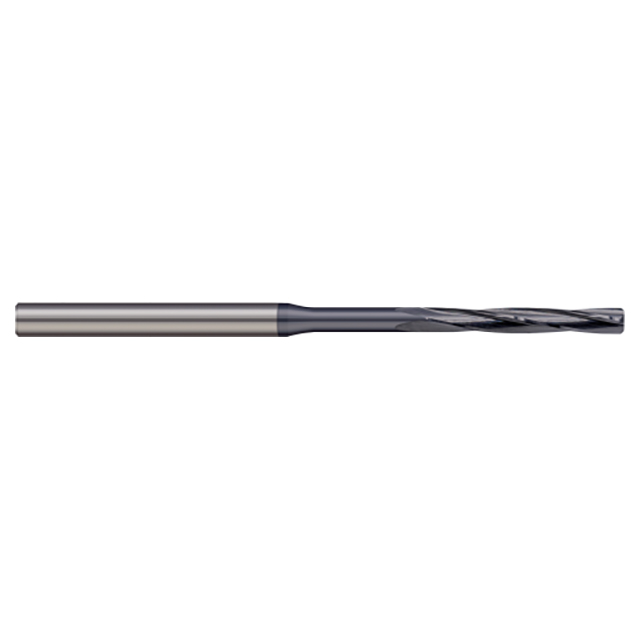

Product Specifications
| Reamer Diameter (Inch) | 5/64" |
| Reamer Diameter (Decimal Inch) | 0.0781" |
| Neck Diameter (Decimal Inch) | 0.0761" |
| Overall Reach (Inch) | 1" |
| Overall Reach (Decimal Inch) | 1.0000" |
| Overall Length (Inch) | 2" |
| Overall Length (Decimal Inch) | 2.0000" |
| Chamfer Length (Decimal Inch) | 0.0070" |
| Angle per Side | 45 Degree |
| Included Angle | 90 Degree |
| Number of Flutes | 4 |
| LOC Multiple | 7x |
| Reach Multiple | 12x |
| Margin Length (Inch) | 9/16" |
| Margin Length | 0.5620" |
| Shank Diameter (Inch) | 1/8" |
| Shank Diameter (Decimal Inch) | 0.1250" |
| Metric (Yes/No) | No |
| Center Cutting (Yes/No) | No |
| Chip Breaker (Yes/No) | No |
| Finish/Coating | AlTiN |
| Double Ended (Yes/No) | No |
| Weldon Flat (Yes/No) | No |
| Coolant Through (Yes/No) | No |
