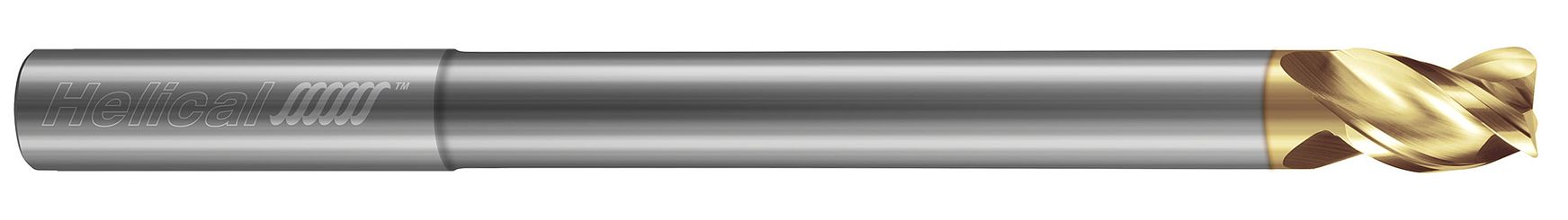

Helical Solutions 46740 | H40ALV-RN-M-31000-R.060 1" Diameter x 1" Shank x 1-1/4" LOC x 6" OAL x 0.0600" Radius 3 Flute Uncoated Solid Carbide Corner Radius End Mill

$394.50
Brand:
Helical Solutions
Mill Diameter (Inch):
1"
Mill Diameter (Decimal Inch):
1.0000"
Mill Diameter (mm):
25.4mm
Number of Flutes:
3
Corner Radius (Inch):
1/16"
Corner Radius (Decimal Inch):
0.0600"
Corner Radius (mm):
1.52mm
Length of Cut (Inch):
1-1/4"
Length of Cut (Decimal Inch):
1.2500"
Length of Cut (mm):
31.75mm
Finish/Coating:
UN
Shank Diameter (Inch):
1"
Shank Diameter (Decimal Inch):
1.0000"
Shank Diameter (mm):
25.4mm
Overall Length (Inch):
6"
Overall Length (Decimal Inch):
6.0000"
Overall Length (mm):
152.4mm
SKU:
25187755
UPC:
Weight:
1.23 LBS
Shipping:
Free Shipping
46740

This 3 flute, 40° helix end mill for aluminum has a variable pitch design that reduces chatter and harmonics, prolonging tool life and leaving a higher quality part finish. Its reduced neck design provides it with maximum strength in long reach and deep pocketing applications.

  • Designed for outstanding performance and accelerated metal removal rates in aluminum and non-ferrous materials
  • Designed with a specialized combination of features for excellent performance in roughing and finishing applications
  • Unique "3 teeth-to-center" end geometry for ramping applications
  • Reduced neck provides maximum strength in long reach and deep pocketing applications
  • Wiper flat design leaves superior floor finish*
  • Excellent performance in High Efficiency Milling (HEM)
  • Center cutting
  • h6 shank tolerance for high precision tool holders
  • Uncoated tool offers an excellent option for aluminum finishing applications
  • Zplus coating offers higher hardness and added lubricity for maximum performance
  • Solid carbide end mills
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch)1"
Neck Diameter (Inch)0.9500"
Length of Cut (Inch)1.2500" (1-1/4)
Overall Reach (Inch)3.3750" (3-3/8)
Overall Length (Inch)6"
Corner Radius (Inch)0.0600"
No of Flutes3
Shank Diameter (Inch)1"
Finish/CoatingUncoated
Center Cutting (Yes/No)Yes

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
