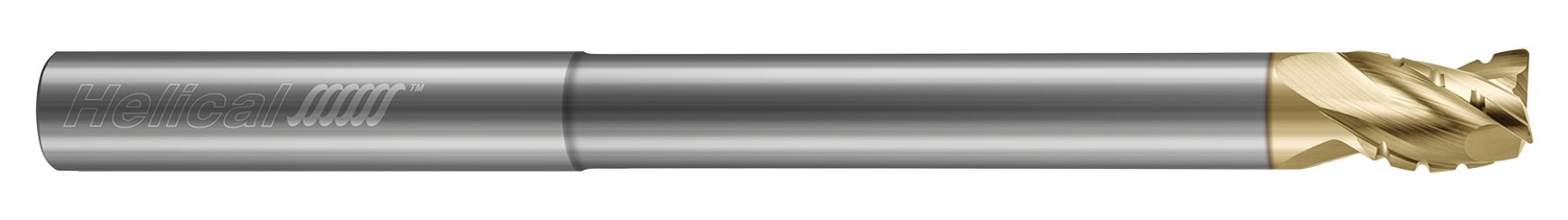

Helical Solutions 84863 | H35ALV-C-RN-030-30250-R.010 1/4" Diameter x 1/4" Shank x 3/8" LOC x 4" OAL x 0.0100" Radius 3 Flute Zplus Coated Solid Carbide Corner Radius End Mill

$48.70
Brand:
Helical Solutions
Mill Diameter (Inch):
1/4"
Mill Diameter (Decimal Inch):
0.2500"
Mill Diameter (mm):
6.35mm
Number of Flutes:
3
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0100"
Corner Radius (mm):
0.25mm
Length of Cut (Inch):
3/8"
Length of Cut (Decimal Inch):
0.3750"
Length of Cut (mm):
9.53mm
Finish/Coating:
Zplus
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Overall Length (mm):
101.6mm
interval quantity:
1
SKU:
25187771
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
84863

Helical's H35ALV-C-RN-3 product offering, a 3 flute, corner radius end mill, is engineered with optimized variable pitch and chipbreaker geometries for reduced harmonics and elevated material removal rates (MRR).

  • Engineered with optimized variable pitch and chipbreaker geometry for reduced harmonics and elevated material removal rates
  • Unique tool design requires less torque and horsepower
  • Excellent performance in High Efficiency Milling (HEM)
  • Reduced neck provides maximum strength in long reach and deep pocketing applications
  • Unique "3 teeth-to-center" end geometry for ramping applications
  • h6 shank tolerance for high precision tool holders
  • Zplus coating for maximum performance in aluminum and non-ferrous alloys
  • Solid carbide end mills
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch)0.2500" (1/4)
Neck Diameter (Inch)0.2370"
Length of Cut (Inch)0.3750" (3/8)
Overall Reach (Inch)0.7500" (3/4)
Overall Length (Inch)4"
Corner Radius (Inch)0.0100"
No of Flutes3
Shank Diameter (Inch)0.2500" (1/4)
Finish/CoatingZPLUS
Center Cutting (Yes/No)Yes
Chip Breaker (Yes/No)Yes
