Keo 931-000-421 | 0.094" Diameter x 1.045" Shank Length x 1.500" OAL Amorphous Diamond Coated Carbide Ball Nose End Mill

$32.96
Brand:
Keo
Mill Diameter (Inch):
3/32"
Mill Diameter (Decimal Inch):
0.0940"
Mill Diameter (mm):
2.39mm
Material:
Carbide
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Overall Length (mm):
38.10mm
Finish/Coating:
Amorphous Diamond
Cutting Direction:
Right Hand
interval quantity:
1
SKU:
25345053
Weight:
1.23 LBS
Shipping:
Calculated at Checkout
Keo 931-000-421 | 0.094" Diameter x 1.045" Shank Length x 1.500" OAL Amorphous Diamond Coated Carbide Ball Nose End Mill

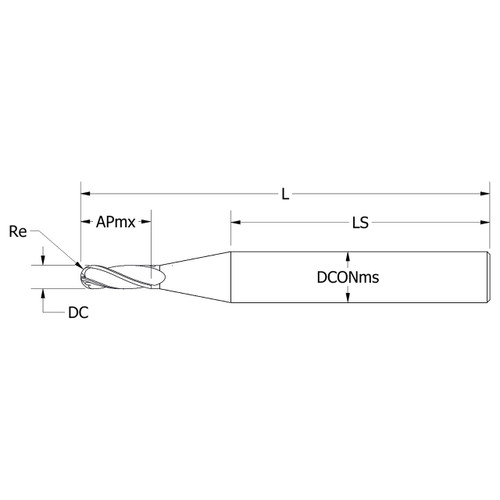

Product Specifications
Manufacturer Part Number931-000-421
Cutting Diameter (Decimal Inch)0.094"
Maximum Axial Depth of Cut (Decimal Inch)0.375"
Connection Diameter (Decimal Inch)0.125"
Overall Length (Decimal Inch)1.500"
Length of Shank (Decimal Inch)1.045"
Cutting Edge Count4
Cutting Edge Corner Radius (Decimal Inch)0.047"
Cutting DirectionRight Hand
MaterialCarbide
CoatingAmorphous Diamond
Connection TypeShank
Product TypeBall Nose End Mill
