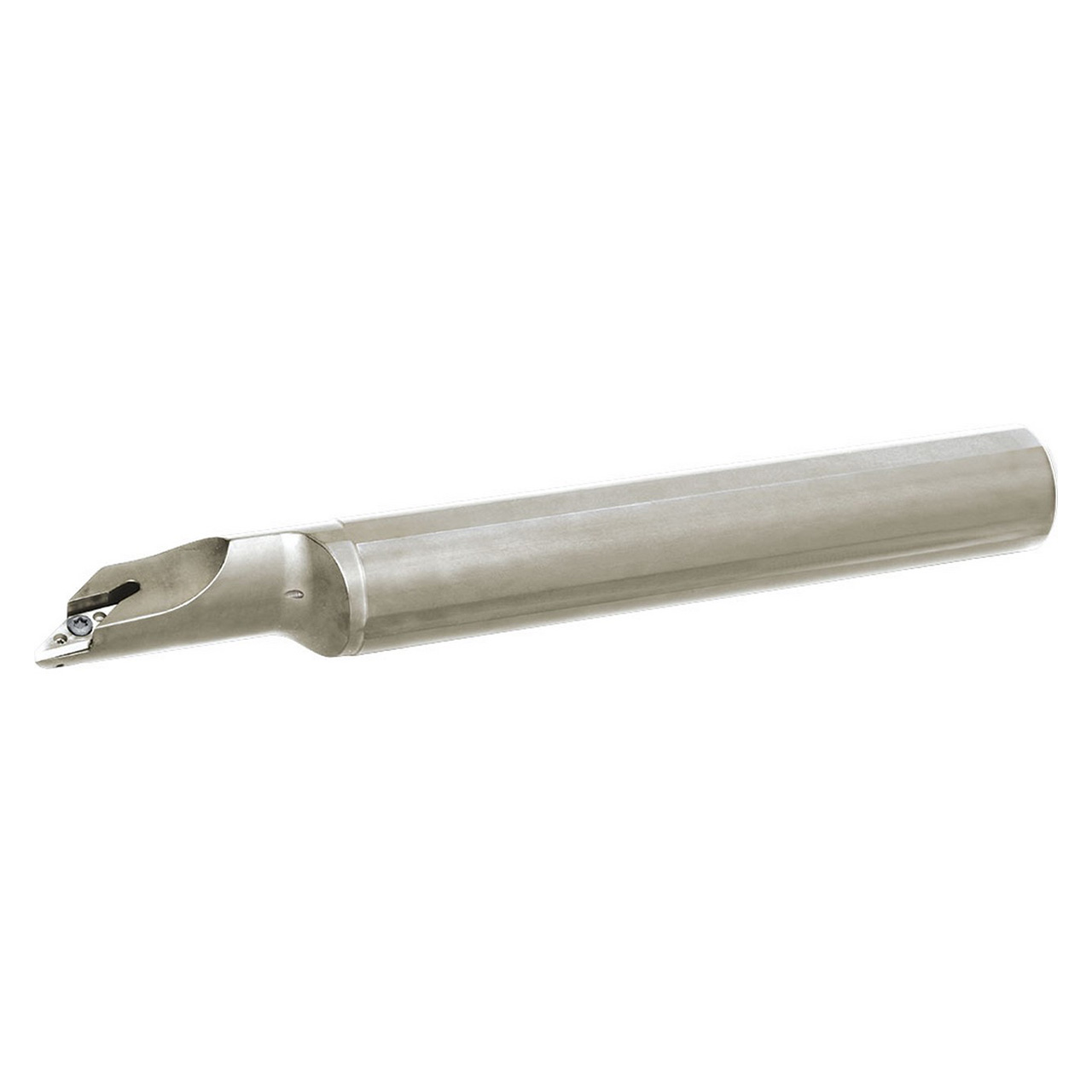

Features:
- Maximum structural thickness for higher toolholder rigidity and controlled chattering for stable machining
- Large chip pocket provides superior chip evacuation
- Anti-chatter vibration performance
- Maintains high cutting edge positional accuracy through the use of a special alloy, thereby achieving high precision machining
- 5 (Axial), -5 (Radial) Rake angle dynamic bar coolant-through boring bar
Product Specifications
| EDP Number | 8609651 |
| Shank Width (Decimal Inch) | 0.9843" |
| Connection Diameter (Decimal Inch) | 1.0000" |
| Connection Diameter (mm) | 25.40mm |
| Minimum Bore Diameter (Decimal Inch) | 1.1811" |
| Minimum Bore Diameter (mm) | 30.00mm |
| Shank Height (Decimal Inch) | 0.9610" |
| Shank Height (mm) | 24.41mm |
| Tool Entering Angle ( Degree) | 52 Degree |
| Usable Length (Decimal Inch) | 1.9500" |
| Usable Length (mm) | 49.53mm |
| Application | Copying | Internal Facing | Internal Spherical Machining |
| Bar Type | Excellent Bar |
| Coolant Through (Yes/No) | Yes |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Insert Shape | 35 Degree Diamond |
| Material | Steel |
| Rake | Positive |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Toolholder Style:
AÂ…SVJB-AE
Series:
DYNB;Minimum Bore Diameter (Decimal Inch)=1.1811"""
Minimum Bore Diameter (mm):
30.00mm
Hand of Holder:
Right-Hand
Shank Diameter (Decimal Inch):
1.0000"
Shank Diameter (mm):
25.40mm
Through Coolant:
Yes
