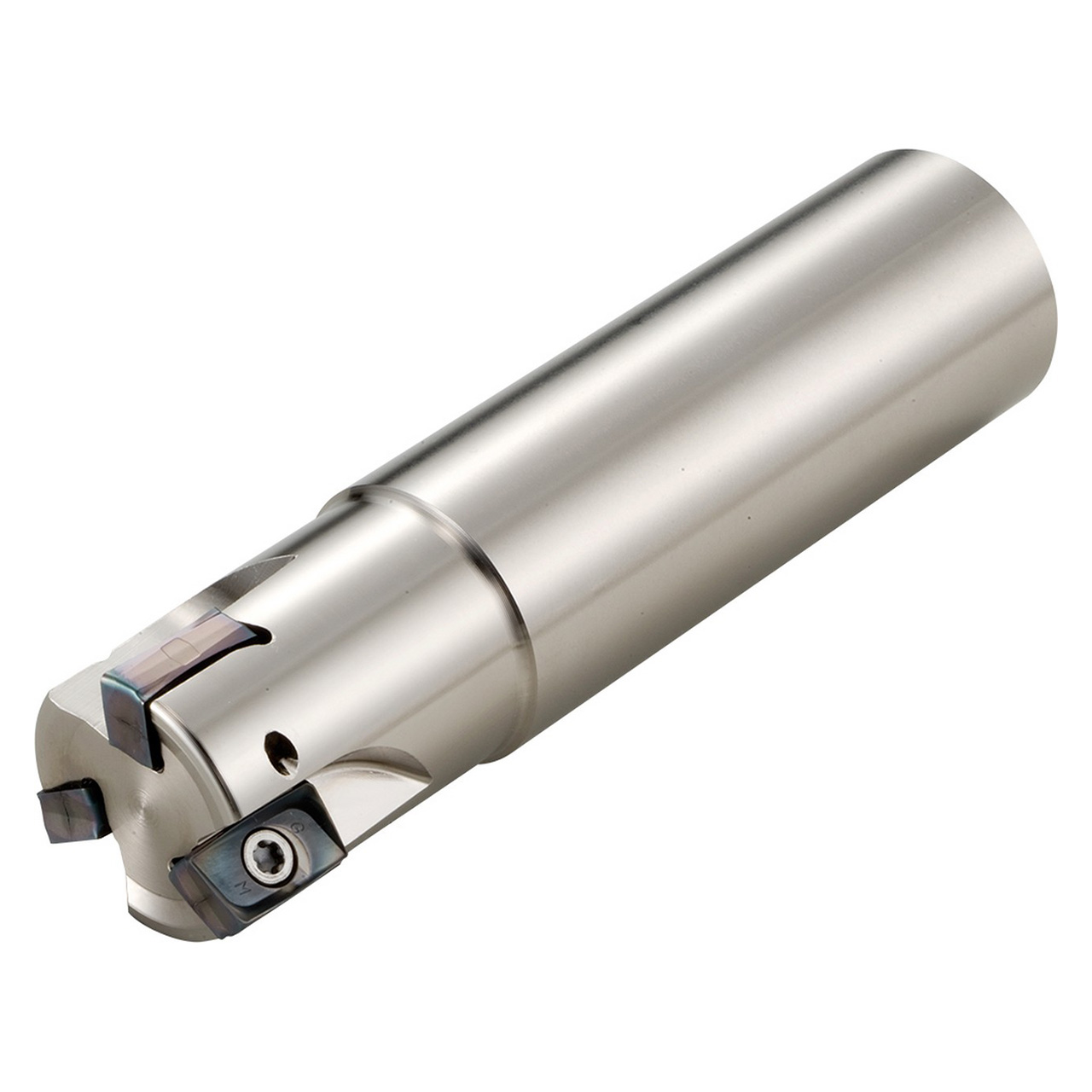

Kyocera Precision Tools 8838043 | MEW1000W100475152T 1.0000" Diameter x 90 Degree Angle 2 Flute Steel Indexable End Mill

$400.77 $332.64
(You save $68.13)
Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
1"
Cutting Diameter (Decimal Inch):
1.0000"
Cutting Diameter (mm):
25.40mm
Maximum Depth of Cut (Inch):
19/32"
Maximum Depth of Cut (Decimal Inch):
0.5906"
Maximum Depth of Cut (mm):
15mm
Shank Type:
Standard Length
Shank Diameter (Decimal Inch):
1.0000"
Shank Diameter (mm):
25.40mm
Number of Cutter Inserts:
2
Toolholder Style:
MEW
interval quantity:
1
SKU:
23221984
UPC:
Weight:
0.88 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

  • The M-Four double-sided, 4-edge insert with Kyocera’s unique mold technology reduces cutting forces for reduced vibrations
  • Low cutting forces equivalent to positive inserts
  • Improved surface finish & minimized vibration

Product Specifications
EDP Number8838043
Maximum Depth of Cut (Decimal Inch)0.5906"
Maximum Depth of Cut (mm)15.70mm
Cutting Diameter (Decimal Inch)1.0000"
Cutting Diameter (mm)25.40mm
Cutting Diameter Minimum (Decimal Inch)1.0000"
Cutting Diameter Minimum (mm)25.40mm
Cutting Diameter Maximum (Decimal Inch)1.0000"
Cutting Diameter Maximum (mm)25.40mm
Connection Diameter (Decimal Inch)1.0000"
Connection Diameter (mm)25.40mm
Tool Entering Angle ( Degree)90 Degree
ApplicationFacing | Plunging | Shouldering | Slotting
Coolant Through (Yes/No)Yes
HandRight Hand
Insert Holding MethodScrew
MaterialSteel
Number of Flutes2
Number of Inserts2
Shank TypeStandard Length
Weldon FlatYes
