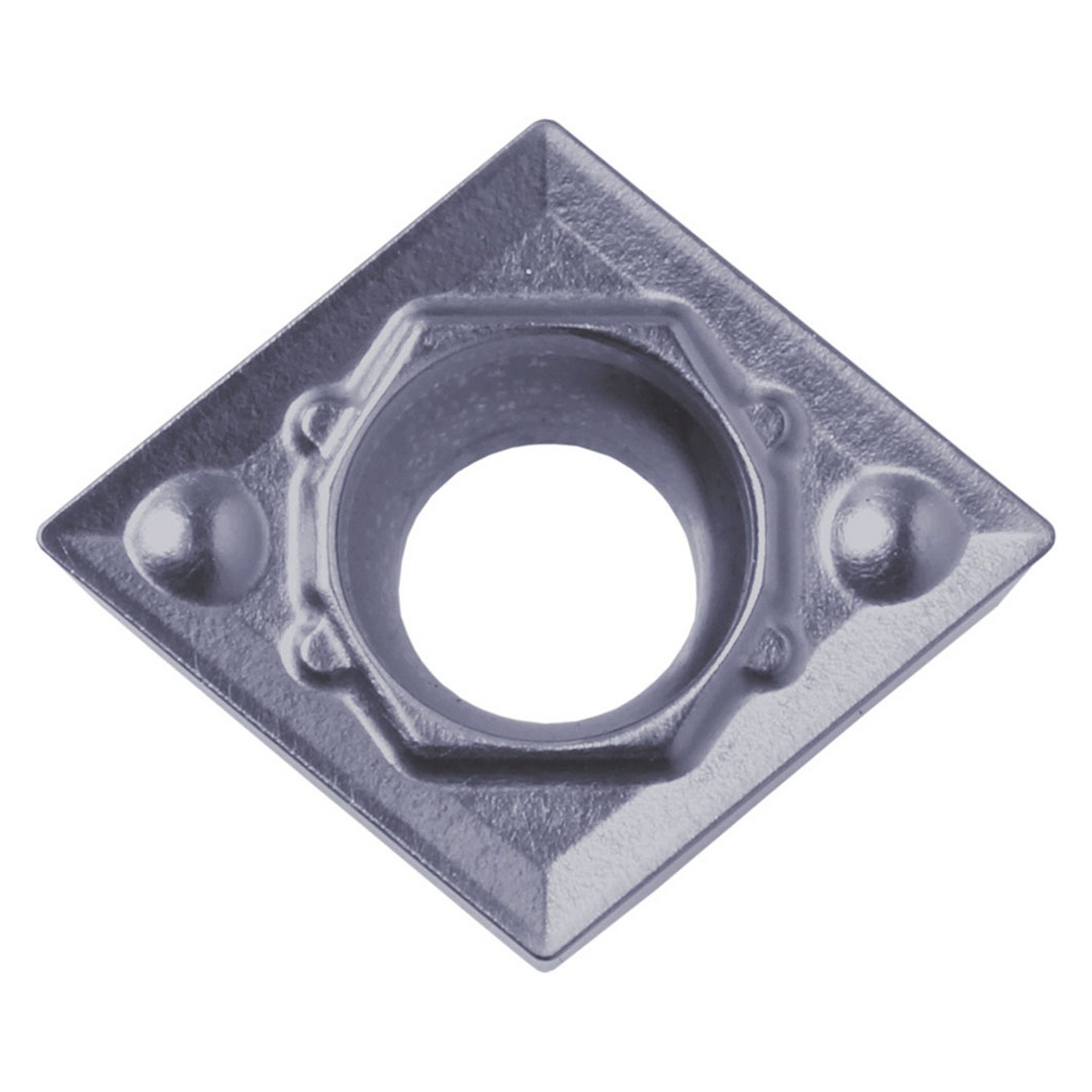

Kyocera Precision Tools 8864028 | CCMT2152HQ PR1535 1/4" Circle Diameter x 3/32" Thickness PVD Coated Carbide Indexable Turning Insert

$9.04
Brand:
Kyocera Precision Tools
Insert Style:
CCMT
Insert Size:
2152
Material:
Carbide;Inscribed Circle (Inch)=1/4"""
Inscribed Circle (Decimal Inch):
0.2500"
Inscribed Circle (mm):
6.35mm
Thickness (Inch):
3/32"
Thickness (Decimal Inch):
0.0937"
Thickness (mm):
2.38mm
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0315"
Corner Radius (mm):
0.80mm
Manufacturer's Grade:
PR1535
SKU:
23222218
Weight:
0.04 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

  • Insert for external turning, facing, boring, internal facing
  • 2 Cutting edges
  • Stabilized turning operations and long tool life with MEGACOAT NANO coating technology
  • Application: PVD for titanium alloy and precipitation hardened stainless steel

Product Specifications
EDP Number8864028
Inscribed Circle (Inch)1/4"
Inscribed Circle (mm)6.35mm
Corner Radius (Inch)1/32"
Corner Radius (mm)0.80mm
Thickness (Inch)3/32"
Thickness (mm)2.38mm
ApplicationBoring | External Turning | Facing | Internal Facing
ChipbreakerHQ
Coating ProcessPVD
Cutting RangeFinishing Medium
HandNeutral
Insert GradePR1535
Insert Holding MethodScrew or Clamp
Insert Shape80 Degree Diamond
Insert Included Angle ( Degree)80 Degree
Insert Size2152
MaterialCarbide
Number of Cutting Edges2
Primary Workpiece MaterialStainless Steel (M)|Heat-Resistant Alloy (S)|(S) Titanium Alloy
Usage ClassificationLight Interruption
