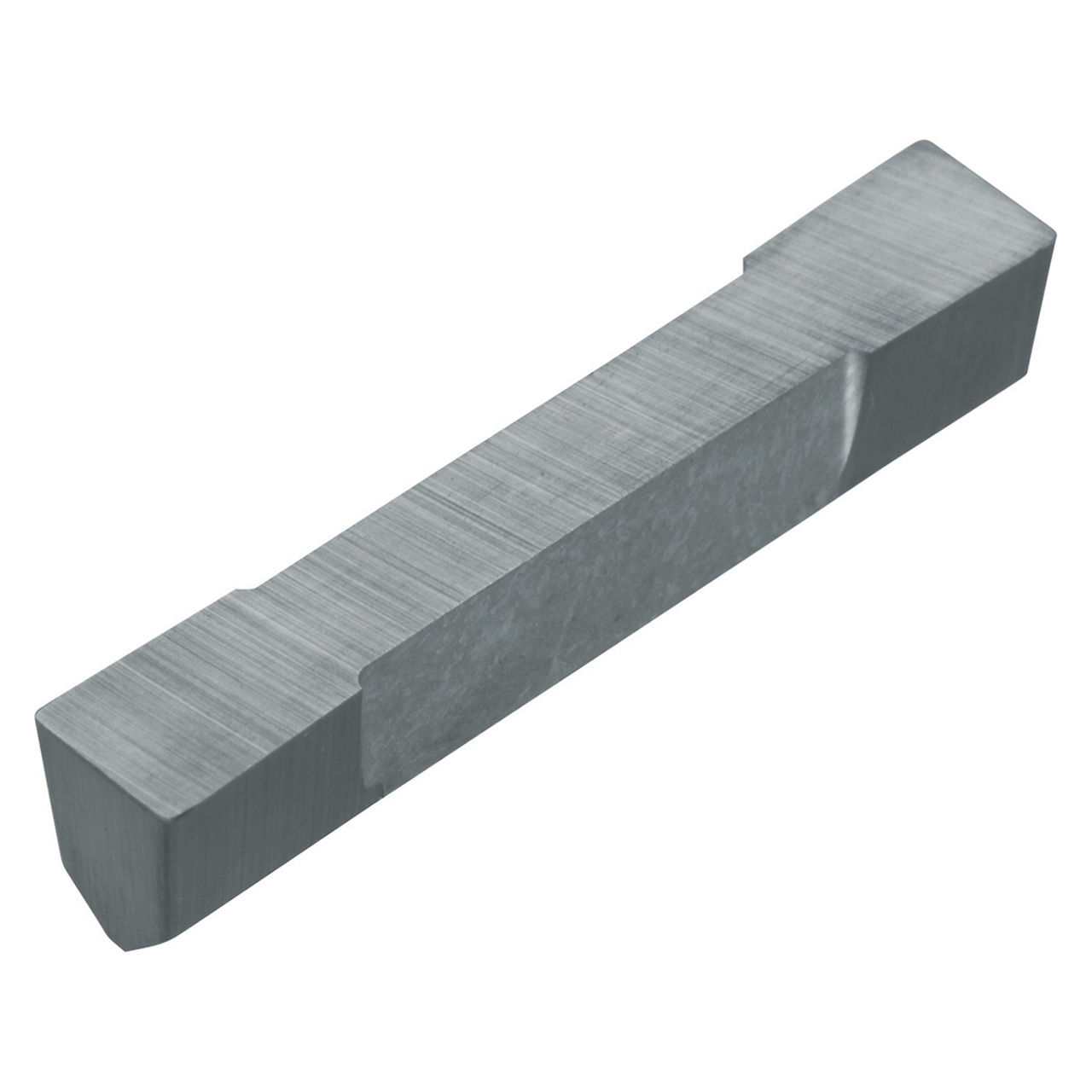

Kyocera Precision Tools 8864063 | DB375R30 TN60 0.3752" Cutting width x 1.1252" Insert Length Uncoated Cermet Grooving Insert

$23.93
Brand:
Kyocera Precision Tools
Insert Style:
DB
Insert Size:
375
Material:
Cermet;Cutting Width (Decimal Inch)=0.3752"""
Cutting Width (mm):
9.53mm
Maximum Depth of Cut (Decimal Inch):
0.7480"
Maximum Depth of Cut (mm):
19.00mm
Manufacturer's Grade:
TN60
Finish/Coating:
Uncoated
SKU:
23222234
Weight:
0.18 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

  • Insert for external grooving
  • 2 Cutting edges
  • General purpose cermet with superior wear resistance and toughness
  • Application: Cutting of steel and stainless steel

Product Specifications
Tool Number8864063
Max Depth of Cut (Decimal Inch)0.7480"
Max Depth of Cut (mm)19.00mm
Cutting Width (Decimal Inch)0.3752"
Cutting Width (mm)9.53mm
Cutting Width Minimum (Decimal Inch)0.3752"
Cutting Width Minimum (mm)9.53mm
Cutting Width Maximum (Decimal Inch)0.3752"
Cutting Width Maximum (mm)9.53mm
Insert Length (Decimal Inch)1.1252"
Insert Length (mm)28.58mm
Corner Radius (Inch)0.030"
Corner Radius (mm)0.75mm
Thickness (Inch)1/4"
Thickness (mm)6.35mm
ApplicationExternal Grooving
Coating ProcessUncoated
Cutting RangeFinishing Medium
HandRight Hand
Insert Holding MethodClamp
Insert GradeTN60
Insert Size375
MaterialCermet
Number of Cutting Edges2
Primary Workpiece MaterialSteel (P)
Usage ClassificationContinuous
