Features:

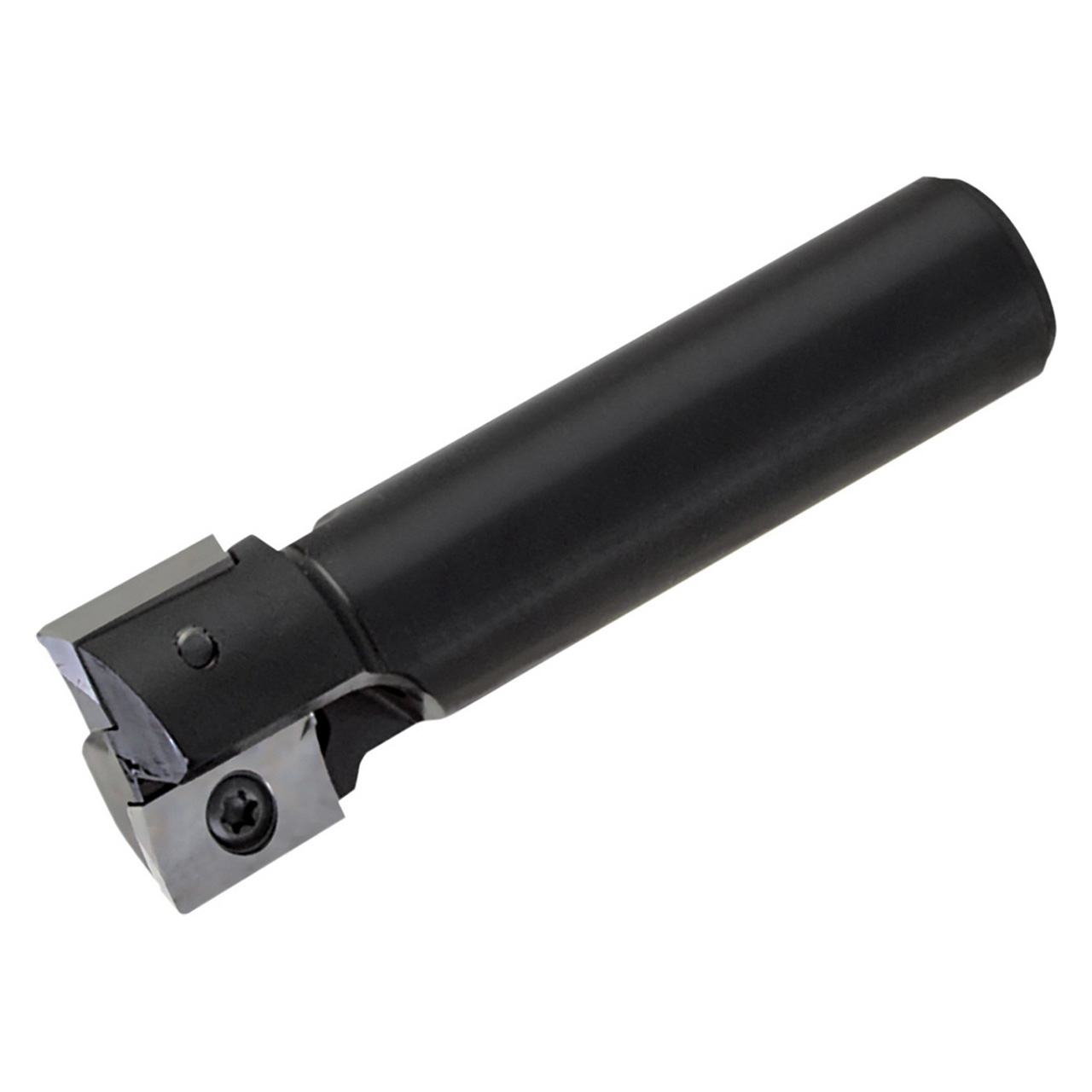

- Right-Hand, standard length, 90 Degree lead angle end mill
- Shouldering, facing, slotting, ramping, helical milling, plunging applications
- Compatible with APET1604 inserts
Product Specifications
| EDP Number | OTM86408 |
| Maximum Depth of Cut (Decimal Inch) | 0.6400" |
| Maximum Depth of Cut (mm) | 9.40mm |
| Cutting Diameter (Decimal Inch) | 1.2500" |
| Cutting Diameter (mm) | 31.75mm |
| Cutting Diameter Minimum (Decimal Inch) | 1.2500" |
| Cutting Diameter Minimum (mm) | 31.75mm |
| Cutting Diameter Maximum (Decimal Inch) | 1.2500" |
| Cutting Diameter Maximum (mm) | 31.75mm |
| Connection Diameter (Decimal Inch) | 1.0000" |
| Connection Diameter (mm) | 25.40mm |
| Tool Entering Angle ( Degree) | 90 Degree |
| Usable Length (Decimal Inch) | 2.1252" |
| Usable Length (mm) | 53.98mm |
| Application | Facing | Ramping | Shouldering | Slotting |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 2 |
| Number of Inserts | 2 |
| Shank Type | Standard Length |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
1-1/4"
Cutting Diameter (Decimal Inch):
1.2500"
Cutting Diameter (mm):
31.75mm
Maximum Depth of Cut (Inch):
41/64"
Maximum Depth of Cut (Decimal Inch):
0.6400"
Maximum Depth of Cut (mm):
16.26mm
Shank Type:
Standard Length
Shank Diameter (Decimal Inch):
1.0000"
Shank Diameter (mm):
25.40mm
Number of Cutter Inserts:
2
Toolholder Style:
EM
