Kyocera Precision Tools TAB01846 | DCMT32505PP CA515 3/8" Circle Diameter x 5/32" Thickness CVD Coated Carbide Indexable Turning Insert

$11.48
Brand:
Kyocera Precision Tools
Insert Style:
DCMT
Insert Size:
32505
Material:
Carbide;Inscribed Circle (Inch)=3/8"""
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.525mm
Thickness (Inch):
5/32"
Thickness (Decimal Inch):
0.1563"
Thickness (mm):
3.97mm
0.0080:
Corner Radius (mm)"
0.20mm:
Manufacturer's Grade
SKU:
23223247
Weight:
0.14 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

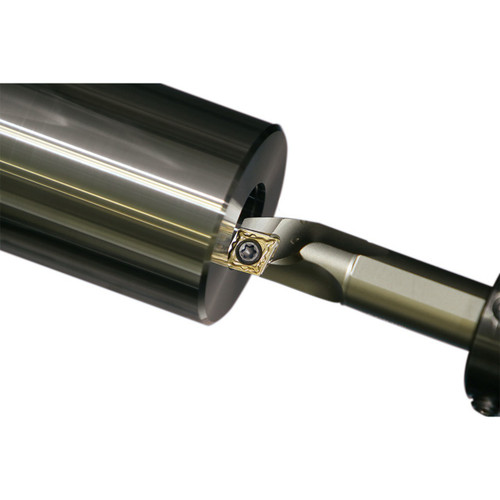

  • Insert for external turning, copying, back boring
  • 2 Cutting edges
  • Special substrate and tough coating film provides thermal deformation and high wear resistance
  • Application: Continuous to light interrupted steel machining (general use)

Product Specifications
EDP NumberTAB01846
Inscribed Circle (Inch)3/8"
Inscribed Circle (mm)9.525mm
Corner Radius (Inch)0.008"
Corner Radius (mm)0.20mm
Thickness (Inch)5/32"
Thickness (mm)3.97mm
ApplicationBack Boring | Copying | External Turning
ChipbreakerPP
Coating ProcessCVD
Cutting RangeFinishing
HandNeutral
Insert GradeCA515
Insert Holding MethodScrew or Clamp
Insert Shape55 Degree Diamond
Insert Included Angle ( Degree)55 Degree
Insert Size32505
MaterialCarbide
Number of Cutting Edges2
Primary Workpiece MaterialCarbon/Alloy Steel (P)
Usage ClassificationContinuous
