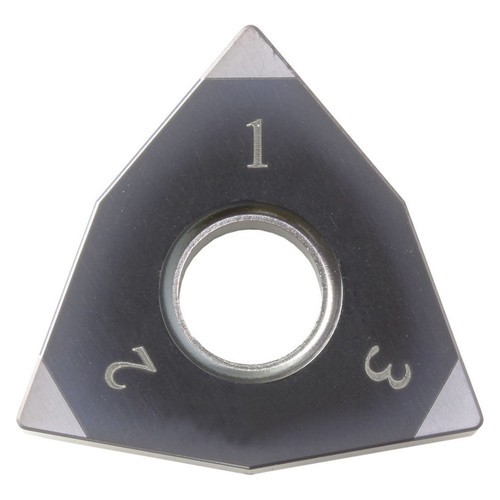

Kyocera Precision Tools TBA07213 | WNGA433S00730MET KBN35M 1/2" Circle Diameter x 3/16" Thickness PVD Coated Honeycomb CBN Indexable Turning Insert

$87.77 $64.07
(You save $23.70)
Brand:
Kyocera Precision Tools
Insert Style:
WNGA
Insert Size:
433
Material:
Honeycomb CBN
Inscribed Circle (Inch):
1/2"
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1874"
Thickness (mm):
4.76mm
Corner Radius (Inch):
3/64"
Corner Radius (Decimal Inch):
0.0157"
Corner Radius (mm):
1.20mm
Manufacturer's Grade:
KBN35M
interval quantity:
1
SKU:
23224601
UPC:
Weight:
0.04 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Features:

  • Insert for external turning, facing, boring, internal facing
  • Multi-edge/tough with 3 cutting edges
  • Honeycomb structure CBN composite material consisting of wear resistant CBN (core) and tough CBN (shell)
  • Heat-resistant MEGACOAT on tough honeycomb structure CBN
  • Application: Stable machining of hardened steel at interrupted machining

Product Specifications
EDP NumberTBA07213
Inscribed Circle (Inch)1/2"
Inscribed Circle (mm)12.70mm
Corner Radius (Inch)3/64"
Corner Radius (mm)1.20mm
Thickness (Inch)3/16"
Thickness (mm)4.76mm
ApplicationBoring | External Turning | Facing | Internal Facing
Coating ProcessPVD
Cutting RangeRoughing
HandNeutral
Insert GradeKBN35M
Insert Holding MethodScrew or Clamp
Insert Shape80 Degree Trigon
Insert Included Angle ( Degree)80 Degree
Insert Size433
MaterialHoneycomb CBN
Number of Cutting Edges3
Primary Workpiece MaterialHardened Materials (H)
Usage ClassificationHeavy Interruption
