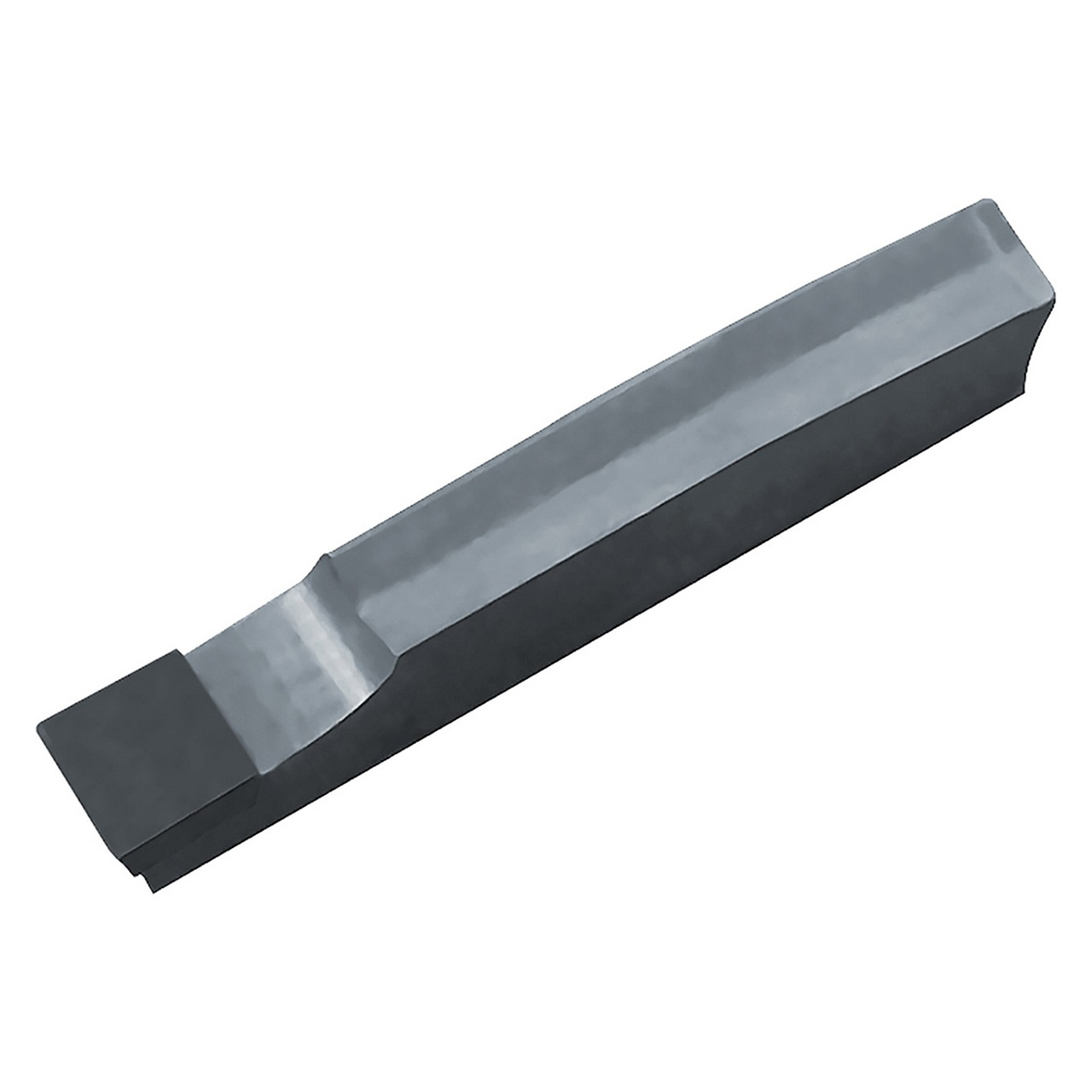

Features:
- Insert for external grooving
- 1-Edge
- 1 Cutting edge
- High CBN content ratio
- Application: Machining of sintered steel (preventing burr formation)
Product Specifications
| Tool Number | TBT10741 |
| Max Depth of Cut (Decimal Inch) | 1.0039" |
| Max Depth of Cut (mm) | 25.50mm |
| Cutting Width (Decimal Inch) | 0.1181" |
| Cutting Width (mm) | 3.00mm |
| Cutting Width Minimum (Decimal Inch) | 0.1181" |
| Cutting Width Minimum (mm) | 3.00mm |
| Cutting Width Maximum (Decimal Inch) | 0.1181" |
| Cutting Width Maximum (mm) | 3.00mm |
| Insert Length (Decimal Inch) | 0.7874" |
| Insert Length (mm) | 20.00mm |
| Corner Radius (Inch) | 1/64" |
| Corner Radius (mm) | 0.40mm |
| Thickness (Inch) | 0.169" |
| Thickness (mm) | 4.30mm |
| Application | External Grooving |
| Chipbreaker | NB |
| Coating Process | Uncoated |
| Cutting Range | Finishing Medium |
| Hand | Neutral |
| Insert Holding Method | Clamp |
| Insert Grade | KBN570 |
| Insert Size | 3020 |
| Material | CBN |
| Number of Cutting Edges | 1 |
| Primary Workpiece Material | Steel (P) |
| Usage Classification | Continuous |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
GDGS
Insert Size:
3020
Material:
CBN;Cutting Width (Decimal Inch)=0.1181"
Cutting Width (mm):
3.00mm
Maximum Depth of Cut (Decimal Inch):
1.0039"
Maximum Depth of Cut (mm):
25.50mm
Manufacturer's Grade:
KBN570
Finish/Coating:
Uncoated
