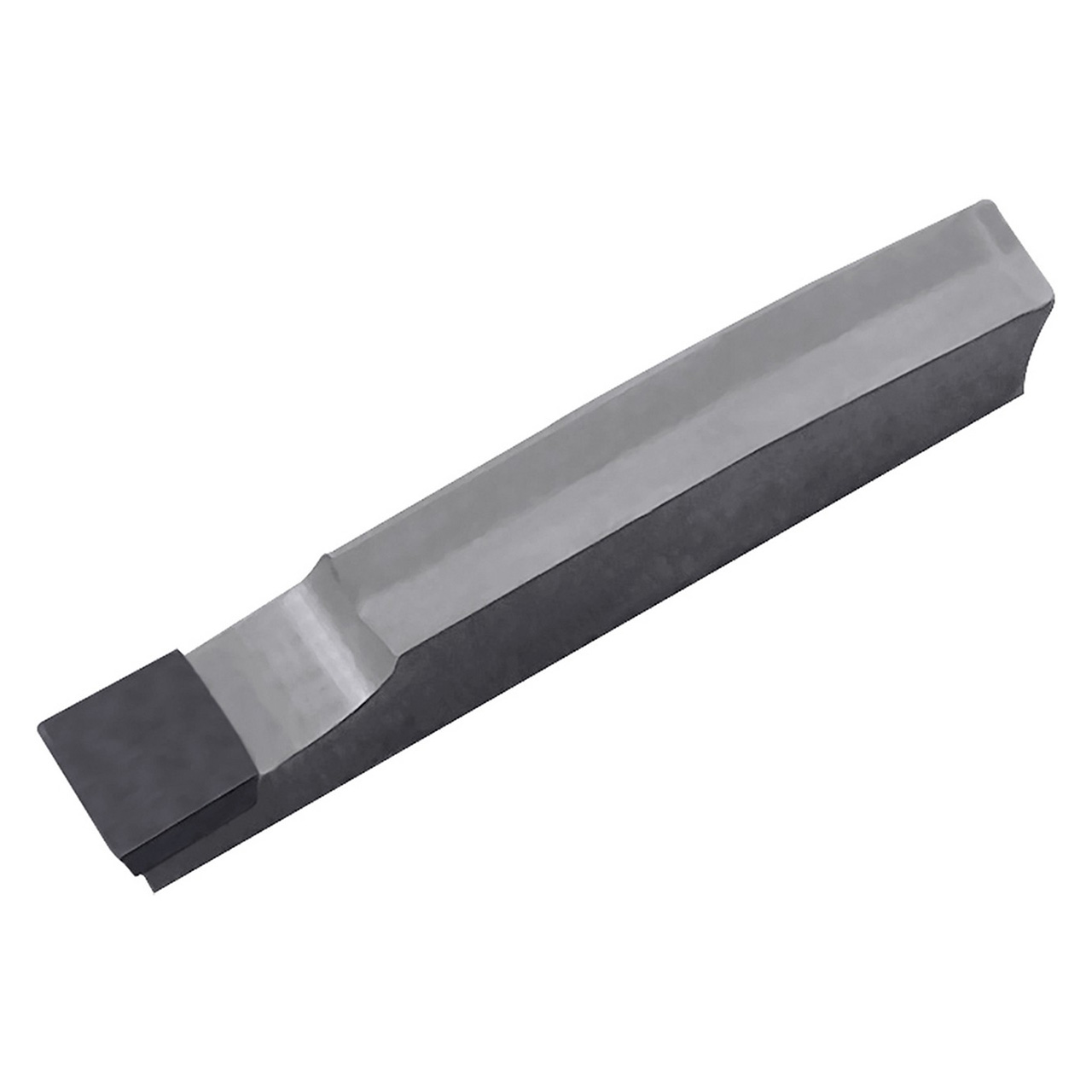

Features:
- Insert for deep grooving, external grooving
- 1-Edge
- 1 Cutting edge
- Good balance of toughness and wear resistance, non-coated CBN
- Application: General grade for hardened steel, high stability at high speed and high feed cutting
Product Specifications
| Tool Number | TBW12495 |
| Max Depth of Cut (Decimal Inch) | 0.6693" |
| Max Depth of Cut (mm) | 17.00mm |
| Cutting Width (Decimal Inch) | 0.0787" |
| Cutting Width (mm) | 2.00mm |
| Cutting Width Minimum (Decimal Inch) | 0.0787" |
| Cutting Width Minimum (mm) | 2.00mm |
| Cutting Width Maximum (Decimal Inch) | 0.0787" |
| Cutting Width Maximum (mm) | 2.00mm |
| Insert Length (Decimal Inch) | 0.7874" |
| Insert Length (mm) | 20.00mm |
| Corner Radius (Inch) | 0.008" |
| Corner Radius (mm) | 0.20mm |
| Thickness (Inch) | 0.169" |
| Thickness (mm) | 4.30mm |
| Application | External Deep Grooving | External Grooving |
| Coating Process | Uncoated |
| Cutting Range | Finishing |
| Hand | Neutral |
| Insert Holding Method | Clamp |
| Insert Grade | KBN525 |
| Insert Size | 2 |
| Material | CBN |
| Number of Cutting Edges | 1 |
| Primary Workpiece Material | Hardened Materials (H) |
| Usage Classification | Continuous |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
GMN
Insert Size:
2
Material:
CBN;Cutting Width (Decimal Inch)=0.0787"""
Cutting Width (mm):
2.00mm
Maximum Depth of Cut (Decimal Inch):
0.6693"
Maximum Depth of Cut (mm):
17.00mm
Manufacturer's Grade:
KBN525
Finish/Coating:
Uncoated
