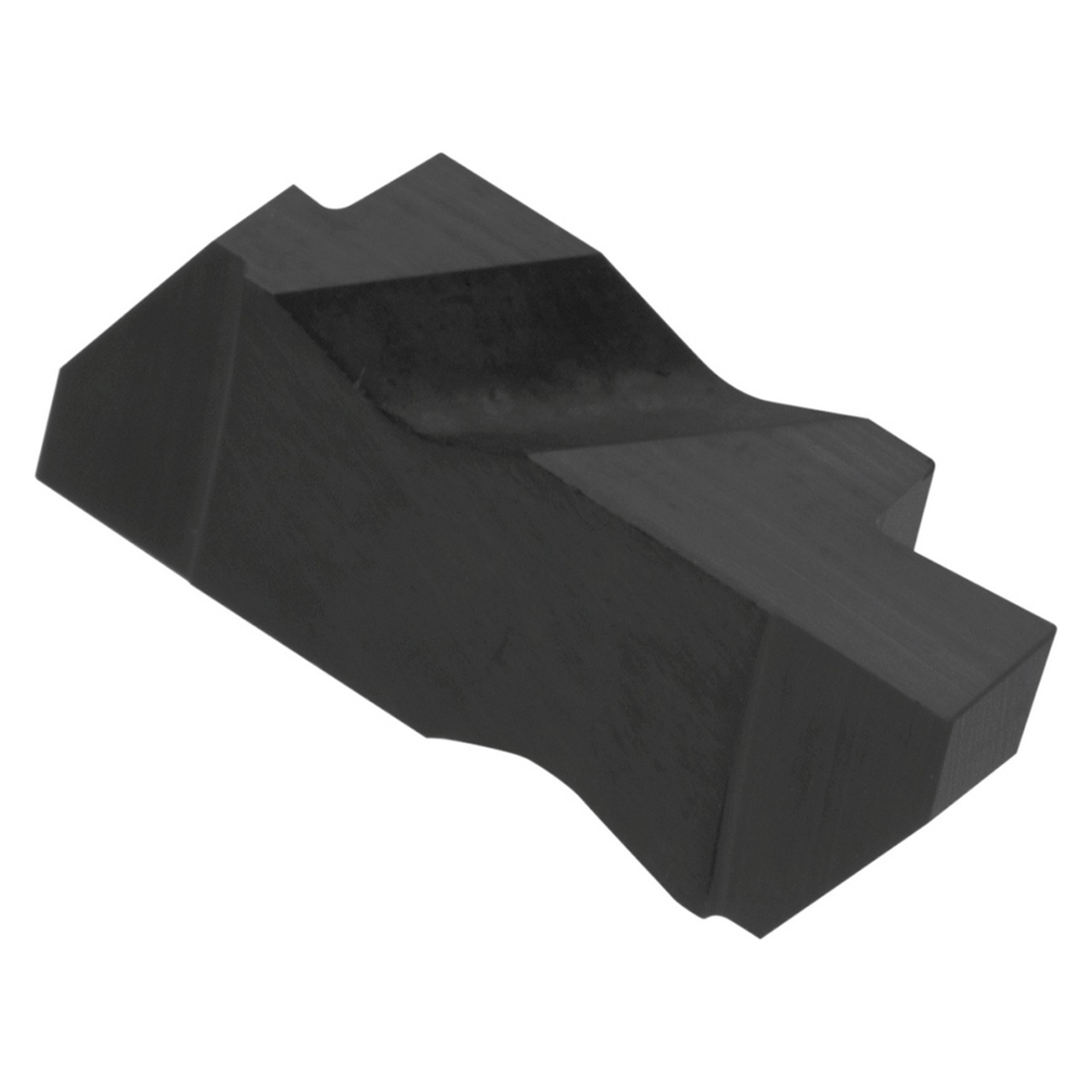

Kyocera Precision Tools TCR89126 | KCG3094L A65 0.0941" Cutting width x 0.8098" Insert Length Uncoated Ceramic Grooving Insert

$20.84
Brand:
Kyocera Precision Tools
Insert Style:
KCG
Insert Size:
3094
Material:
Ceramic;Cutting Width (Decimal Inch)=0.0941"""
Cutting Width (mm):
2.39mm
Maximum Depth of Cut (Decimal Inch):
0.1496"
Maximum Depth of Cut (mm):
3.80mm
Manufacturer's Grade:
A65
Finish/Coating:
Uncoated
SKU:
23225892
Weight:
0.25 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

  • Insert for external grooving, internal large diameter shallow grooving
  • 2 Cutting edges
  • Aluminum oxide and titanium carbide ceramic (Al2O3+TiC)
  • Application: Semi-roughing to finishing of steel, cast iron, and hard materials

Product Specifications
Tool NumberTCR89126
Max Depth of Cut (Decimal Inch)0.1496"
Max Depth of Cut (mm)3.80mm
Cutting Width (Decimal Inch)0.0941"
Cutting Width (mm)2.39mm
Cutting Width Minimum (Decimal Inch)0.0941"
Cutting Width Minimum (mm)2.39mm
Cutting Width Maximum (Decimal Inch)0.0941"
Cutting Width Maximum (mm)2.39mm
Insert Length (Decimal Inch)0.8098"
Insert Length (mm)20.57mm
Corner Radius (Inch)0.008"
Corner Radius (mm)0.20mm
Thickness (Inch)0.344"
Thickness (mm)8.74mm
ApplicationExternal Grooving | Internal Large Diameter Shallow Grooving
Coating ProcessUncoated
Cutting RangeFinishing
HandLeft Hand
Insert Holding MethodClamp
Insert GradeA65
Insert Size3094
MaterialCeramic
Number of Cutting Edges2
Primary Workpiece MaterialCast Iron (K)
Usage ClassificationContinuous
