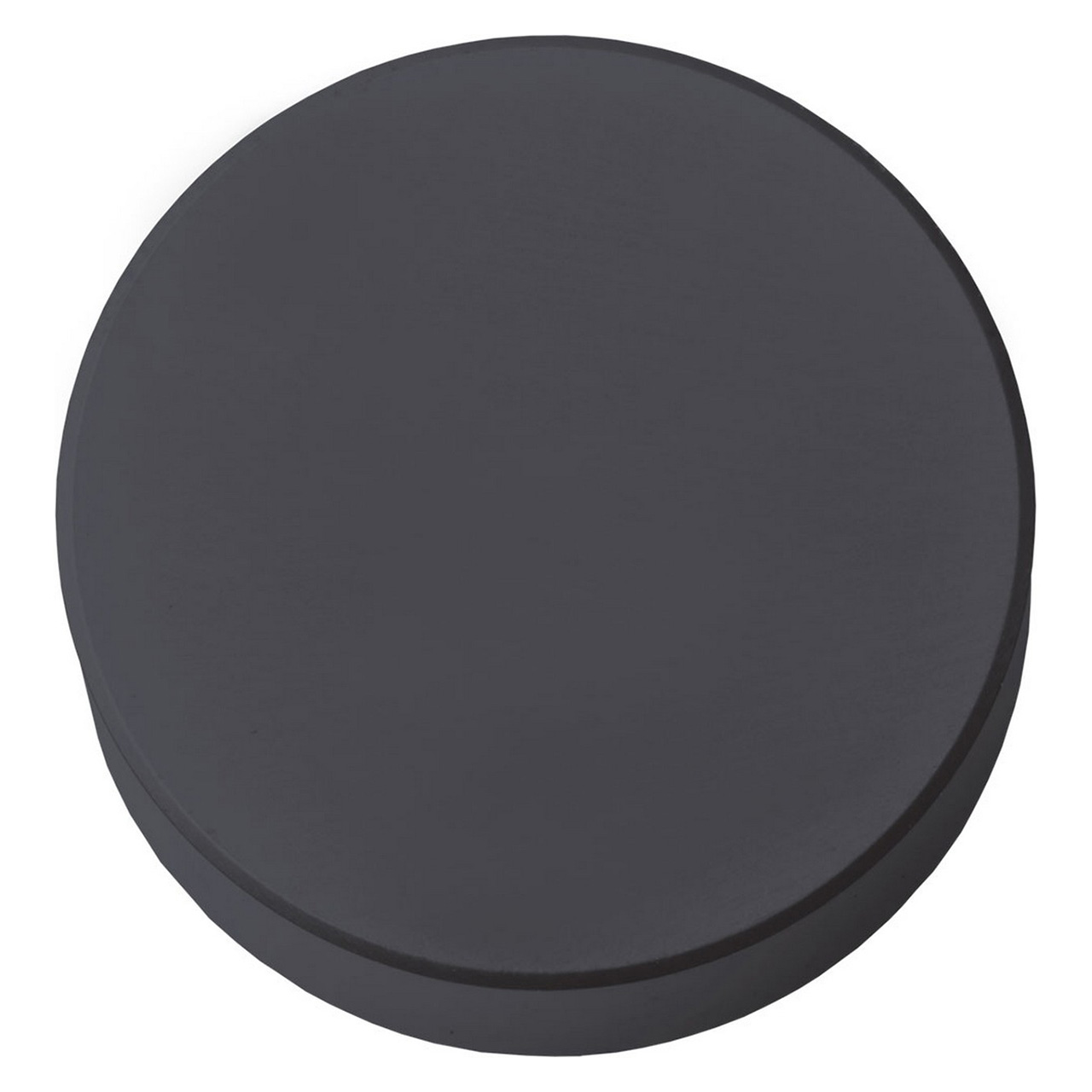

Kyocera Precision Tools TCX04342 | RNG45T00825 KS6050 1/2" Circle Diameter x 5/16" Thickness Uncoated Ceramic Indexable Turning Insert

$21.85
Brand:
Kyocera Precision Tools
Insert Style:
RNG
Insert Size:
45
Material:
Ceramic;Inscribed Circle (Inch)=1/2"""
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
5/16"
Thickness (Decimal Inch):
0.3126"
Thickness (mm):
7.94mm
Manufacturer's Grade:
KS6050
SKU:
23226106
Weight:
0.12 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

  • Insert for external turning, facing, copying
  • Silicon nitride ceramic (Si3N4)
  • Application: Roughing and interrupted machining of cast iron
  • Great for stability (with or without coolant)

Product Specifications
EDP NumberTCX04342
Inscribed Circle (Inch)1/2"
Inscribed Circle (mm)12.70mm
Thickness (Inch)5/16"
Thickness (mm)7.94mm
ApplicationCopying | External Turning | Facing
Coating ProcessUncoated
Cutting RangeMedium Roughing
HandNeutral
Insert GradeKS6050
Insert Holding MethodClamp
Insert ShapeRound
Insert Size45
MaterialCeramic
Primary Workpiece MaterialGray Cast Iron (K)
Usage ClassificationLight Interruption
