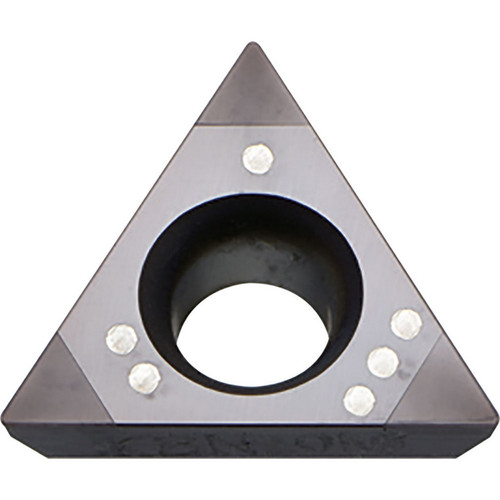

Kyocera Precision Tools TFC00038 | 1/4" Circle Diameter x 1/8" Thickness PVD Coated CBN Indexable Turning Insert

$99.94 $72.96
(You save $26.98)
Brand:
Kyocera Precision Tools
Insert Style:
TPGB
Insert Size:
2205
Material:
CBN;Inscribed Circle (Inch)=1/4"""
Inscribed Circle (Decimal Inch):
0.2500"
Inscribed Circle (mm):
6.35mm
Thickness (Inch):
1/8"
Thickness (Decimal Inch):
0.1252"
Thickness (mm):
3.18mm
Corner Radius (Decimal Inch):
0.0080"
Corner Radius (mm):
0.20mm
Manufacturer's Grade:
KBN020
interval quantity:
1
SKU:
23228118
UPC:
Weight:
0.04 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Features:

  • Combination of new coating technology and high content CBN provides exceptional wear resistance and fracture resistance
  • Supports a wide range of applications from continuous to heavily interrupted machining
  • Newly developed "MEGACOAT TOUGH" coating technology
  • New adhesion layer is laminated between the high wear resistance layer and the CBN
  • Reduces layer peeling to achieve long tool life and stable machining

Product Specifications
EDP NumberTFC00038
Inscribed Circle (Inch)1/4"
Inscribed Circle (mm)6.35mm
Corner Radius (Inch)0.008"
Corner Radius (mm)0.20mm
Thickness (Inch)1/8"
Thickness (mm)3.18mm
ApplicationBack Boring | Boring | Copying | External Turning | Internal Facing
Coating ProcessPVD
Cutting RangeFinishing Medium
HandNeutral
Insert GradeKBN020
Insert Holding MethodScrew or Clamp
Insert Shape60 Degree Triangle
Insert Included Angle ( Degree)60 Degree
Insert Size2205
Insert SizeCBN
Material3
Number of Cutting EdgesHardened Materials (H)
Primary Workpiece MaterialLight Interruption
