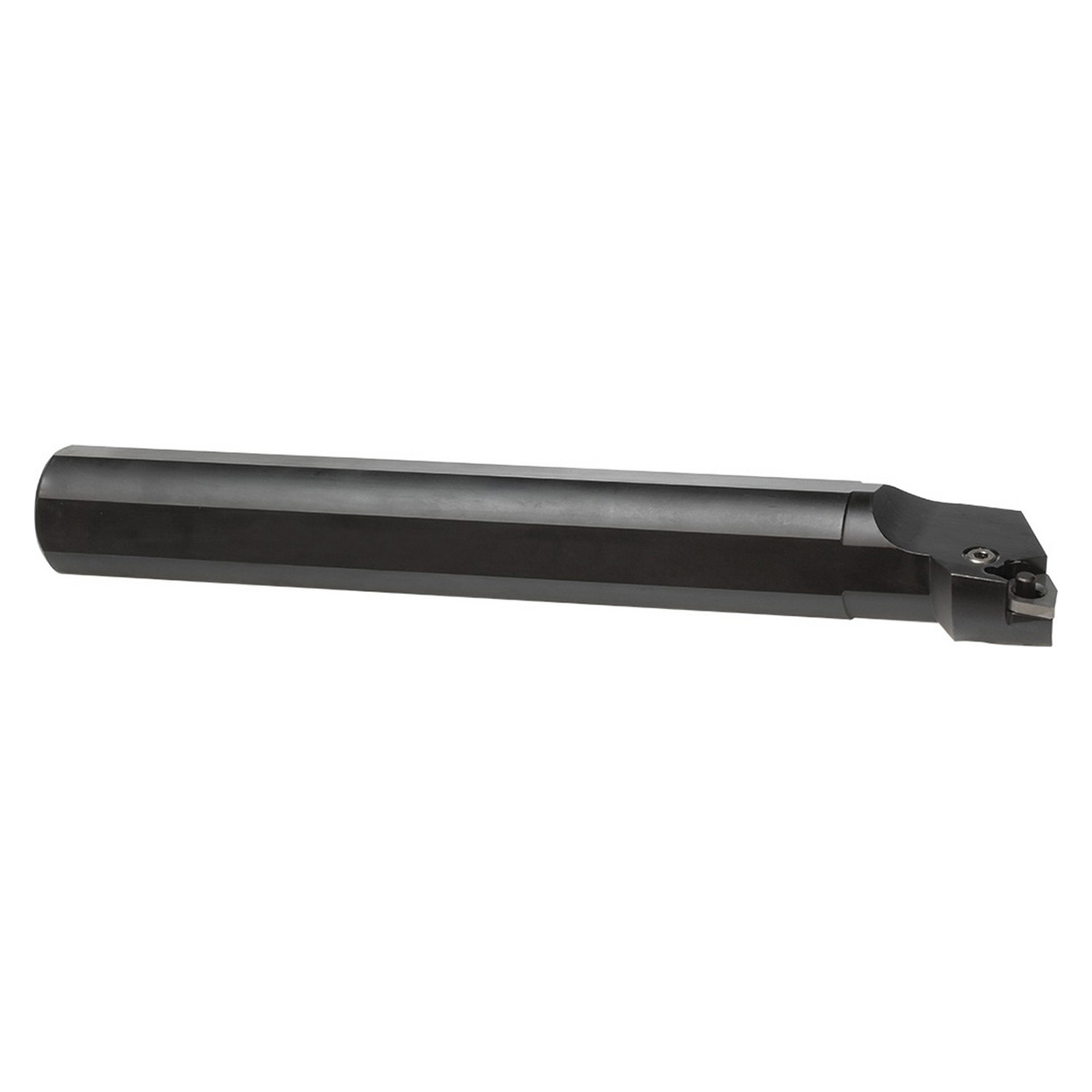

Kyocera Precision Tools THC07951 | S20QPWLNL0627 0.7874" Diameter Left-Hand Steel Indexable Boring Bar

$350.31 $290.76
(You save $59.55)
Brand:
Kyocera Precision Tools
Toolholder Style:
S...PWLN06
Series:
GPBB;Minimum Bore Diameter (Decimal Inch)=1.0630"
Minimum Bore Diameter (mm):
27.00mm
Hand of Holder:
Left-Hand
Shank Diameter (Decimal Inch):
0.7874"
Shank Diameter (mm):
20.00mm
Through Coolant:
No
interval quantity:
1
SKU:
23229208
UPC:
Weight:
1.12 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

  • ~6 (Axial), -17 (Radial) Rake angle general purpose boring bar
  • Great for boring, internal facing applications
  • Compatible with Right-Hand WNMG33, WNGG33 inserts

Product Specifications
EDP NumberTHC07951
Connection Diameter (Decimal Inch)0.7874"
Connection Diameter (mm)20.00mm
Minimum Bore Diameter (Decimal Inch)1.0630"
Minimum Bore Diameter (mm)27.00mm
Shank Height (Decimal Inch)0.7480"
Shank Height (mm)19.00mm
Tool Entering Angle ( Degree)95 Degree
ApplicationBoring | Internal Facing
Bar TypeSteel Shank
HandLeft Hand
Insert Holding MethodLever Lock / Lock Pin
Insert Shape80 Degree Trigon
MaterialSteel

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
