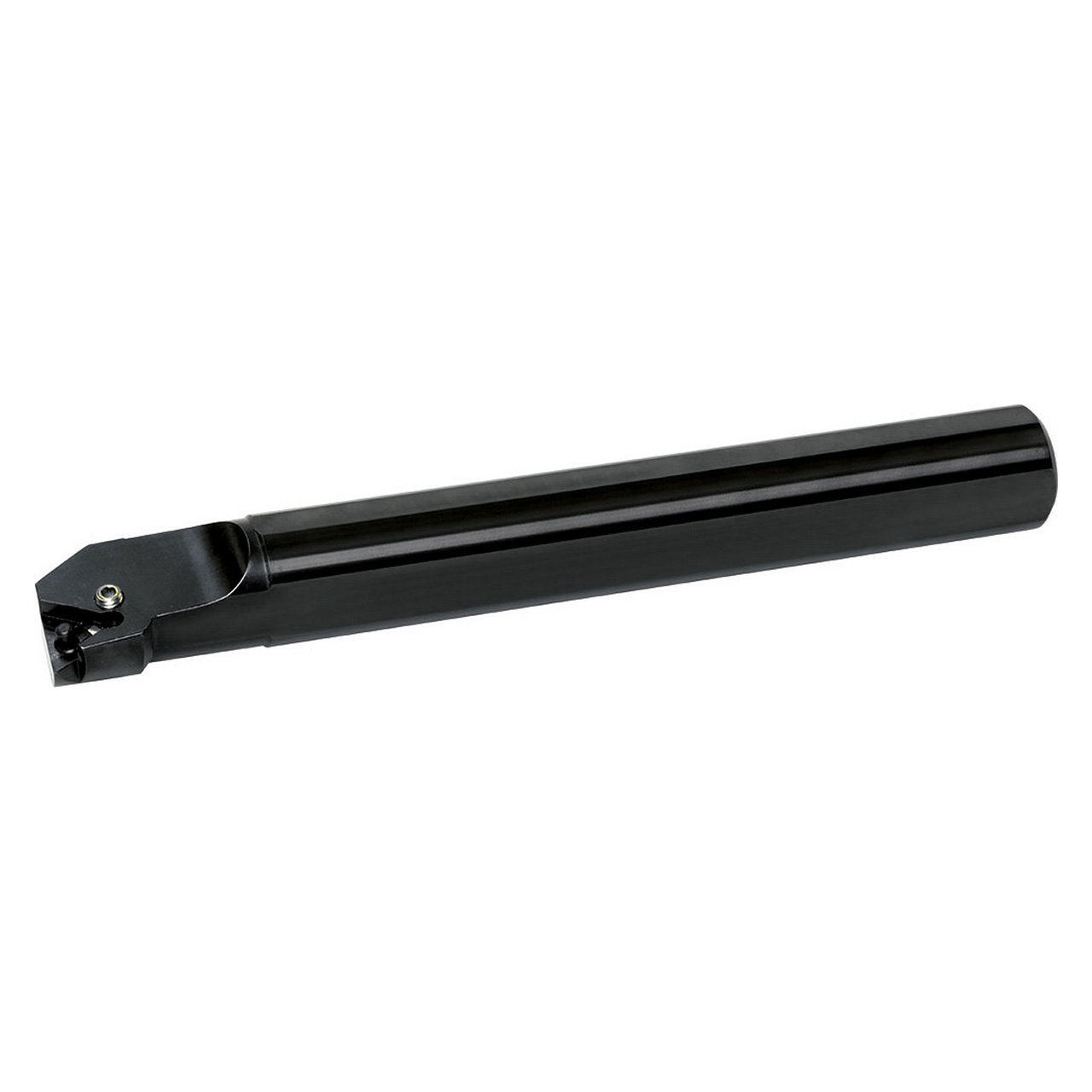

Kyocera Precision Tools THC08058 | S32SPTUNR1640 1.2598" Diameter Right-Hand Steel Indexable Boring Bar

$325.87
Brand:
Kyocera Precision Tools
Toolholder Style:
S...PTUN16
Series:
GPBB;Minimum Bore Diameter (Decimal Inch)=1.5748"""
Minimum Bore Diameter (mm):
40.00mm
Hand of Holder:
Right-Hand
Shank Diameter (Decimal Inch):
1.2598"
Shank Diameter (mm):
32.00mm
Through Coolant:
No
SKU:
23229242
Weight:
3.32 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

  • ~6 (Axial), -13 (Radial) Rake angle general purpose boring bar
  • Great for boring applications
  • Compatible with Left-Hand TNMG33, TNGG33, TNGA33, TNMM33 inserts

Product Specifications
EDP NumberTHC08058
Connection Diameter (Decimal Inch)1.2598"
Connection Diameter (mm)32.00mm
Minimum Bore Diameter (Decimal Inch)1.5748"
Minimum Bore Diameter (mm)40.00mm
Shank Height (Decimal Inch)1.1811"
Shank Height (mm)30.00mm
Tool Entering Angle ( Degree)93 Degree
ApplicationBoring
Bar TypeSteel Shank
HandRight Hand
Insert Holding MethodLever Lock / Lock Pin
Insert Shape60 Degree Triangle
MaterialSteel

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Kyocera Precision Tools
Toolholder Style:
S...PTUN16
Series:
GPBB;Minimum Bore Diameter (Decimal Inch)=1.5748"""
Minimum Bore Diameter (mm):
40.00mm
Hand of Holder:
Right-Hand
Shank Diameter (Decimal Inch):
1.2598"
Shank Diameter (mm):
32.00mm
Through Coolant:
No
