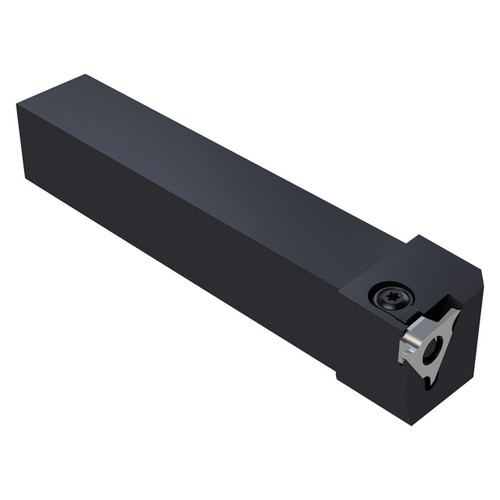

Kyocera Precision Tools THC08191 | KGBASL2525M2225 0.9843" Shank Width x 0.9843" Shank Height Steel External Grooving Toolholder

$239.58 $198.85
(You save $40.73)
Brand:
Kyocera Precision Tools
Toolholder Type:
External Grooving
Hand of Holder:
Left-Hand
Maximum Depth of Cut (Decimal Inch):
0.1772"
Maximum Depth of Cut (mm):
4.50mm
Toolholder Style:
KGBAS
Shank Height (Decimal Inch):
0.9843"
Shank Height (mm):
25.00mm
Shank Width/Diameter (Decimal Inch):
0.9843"
Shank Width/Diameter (mm):
25.00mm
Series:
GBA;Through Coolant=No"
interval quantity:
1
SKU:
23229301
UPC:
Weight:
1.81 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Features:

  • 90 Degree toolholder design
  • Uses economical inserts with 3 cutting edges
  • Large lineup of chipbreakers and insert grades to choose from
  • smooth chip control and various applications
  • Compatible with GBA43R inserts

Product Specifications
EDP NumberTHC08191
Shank Width (Decimal Inch)0.6299"
Shank Width (mm)25.00mm
Max Depth of Cut (Decimal Inch)0.1772"
Max Depth of Cut (mm)4.50mm
Cutting Width (Decimal Inch)0.0941 - 0.1299"
Cutting Width (mm)2.39 - 3.30mm
Cutting Width Minimum (Decimal Inch)0.0941"
Cutting Width Minimum (mm)2.39mm
Cutting Width Maximum (Decimal Inch)0.1299"
Cutting Width Maximum (mm)3.30mm
Shank Height (Decimal Inch)0.9843"
Shank Height (mm)25.00mm
ApplicationShallow Grooving
Grooving TypeExternal Grooving
HandLeft Hand
Insert Holding MethodLever Lock / Lock Pin
MaterialSteel
