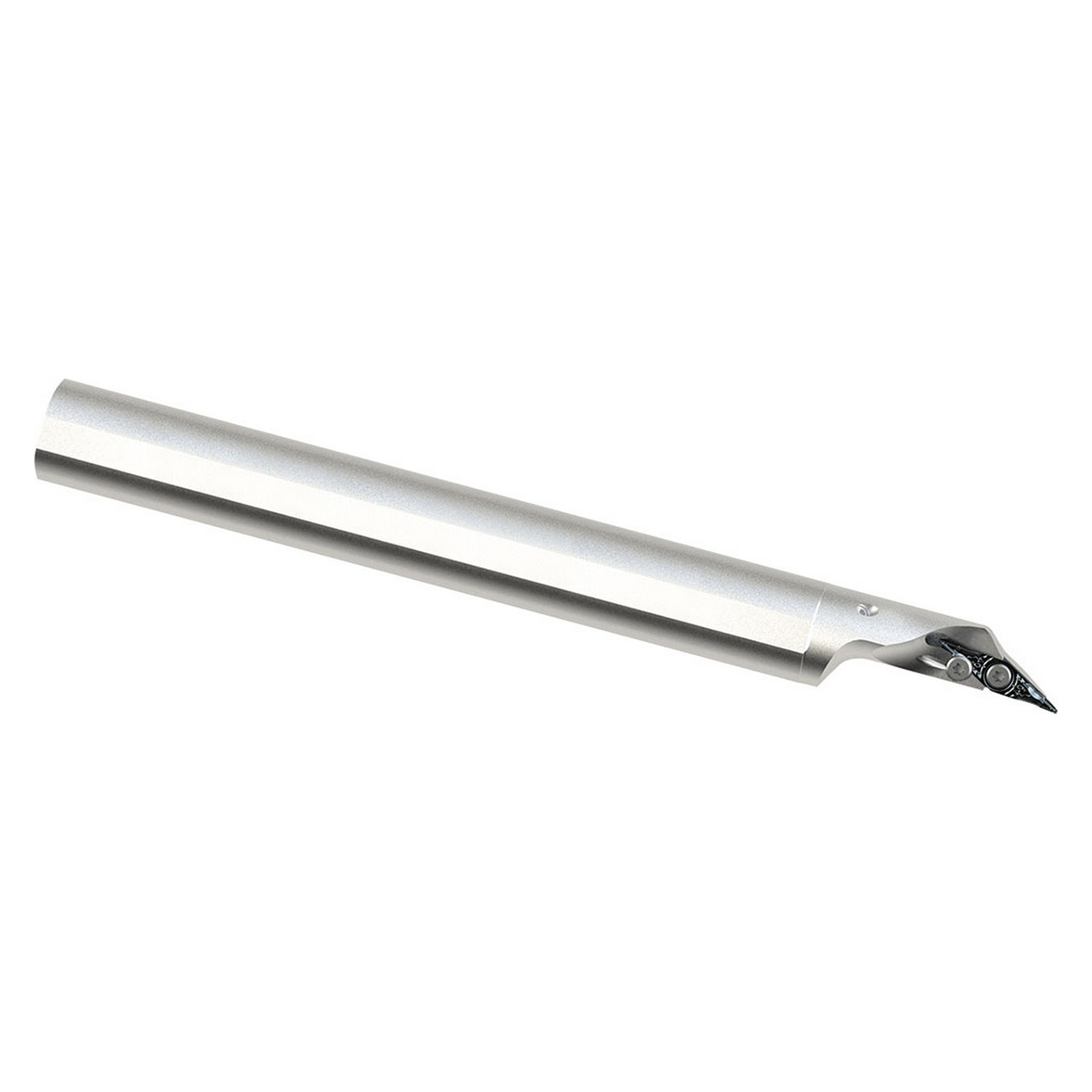

Kyocera Precision Tools THC14989 | A32SSZJBL1340AE 1.2598" Diameter x 2.4213" Usable Length Left-Hand Steel Indexable Boring Bar

$452.52 $375.59
(You save $76.93)
Brand:
Kyocera Precision Tools
Toolholder Style:
A SZJB-AE
Series:
DYNB;Minimum Bore Diameter (Decimal Inch)=1.5748"
Minimum Bore Diameter (mm):
40.00mm
Hand of Holder:
Left-Hand
Shank Diameter (Decimal Inch):
1.2598"
Shank Diameter (mm):
32.00mm
Through Coolant:
Yes
interval quantity:
1
SKU:
23230812
UPC:
Weight:
2.91 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

  • 25 Degree insert profiling tools
  • Newly developed self-clamping mechanism achieves a higher rigidity
  • Provides high quality and stable machining in various machining applications
  • Unique holder body design with coolant-through technology
  • Unique design holds insert at 2 points

Product Specifications
EDP NumberTHC14989
Connection Diameter (Decimal Inch)1.2598"
Connection Diameter (mm)32.00mm
Minimum Bore Diameter (Decimal Inch)1.5748"
Minimum Bore Diameter (mm)40.00mm
Shank Height (Decimal Inch)1.2205"
Shank Height (mm)31.00mm
Tool Entering Angle ( Degree)60 Degree
Usable Length (Decimal Inch)2.4213"
Usable Length (mm)61.50mm
ApplicationCopying | Internal Facing | Undercutting
Bar TypeExcellent Bar
Coolant Through (Yes/No)Yes
HandLeft Hand
Insert Holding MethodScrew
Insert Shape25 Degree Diamond
MaterialSteel
RakePositive
