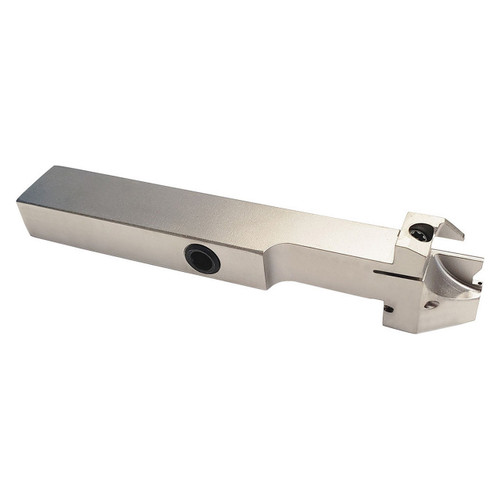

Features:
- Direct Coolant-Through holders for small parts machining
- Supports internal coolant with or without piping systems
- Discharges coolant directly toward the rake surface of insert
- Compatible with Right-Hand GBF32R inserts
Product Specifications
| EDP Number | THC15230 |
| Shank Width (mm) | 18.00mm |
| Max Depth of Cut (Decimal Inch) | 0.1181" |
| Max Depth of Cut (mm) | 3.00mm |
| Cutting Width (Decimal Inch) | 0.0098 - 0.1181" |
| Cutting Width (mm) | 0.25 - 3.00mm |
| Cutting Width Minimum (Decimal Inch) | 0.0098" |
| Cutting Width Minimum (mm) | 0.25mm |
| Cutting Width Maximum (Decimal Inch) | 0.1181" |
| Cutting Width Maximum (mm) | 3.00mm |
| Shank Height (Decimal Inch) | 0.5000" |
| Shank Height (mm) | 12.70mm |
| Application | Shallow Grooving | Small Parts Machining |
| Coolant Through (Yes/No) | Yes |
| Grooving Type | External Grooving |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Toolholder Type:
External Grooving
Hand of Holder:
Right-Hand
Maximum Depth of Cut (Decimal Inch):
0.1181"
Maximum Depth of Cut (mm):
3.00mm
Toolholder Style:
KGBF-JCTM
Shank Height (Decimal Inch):
0.5000"
Shank Height (mm):
12.70mm
Shank Width/Diameter (Decimal Inch):
0.7087"
Shank Width/Diameter (mm):
18.00mm
Series:
GBFJ;Through Coolant=Yes"
