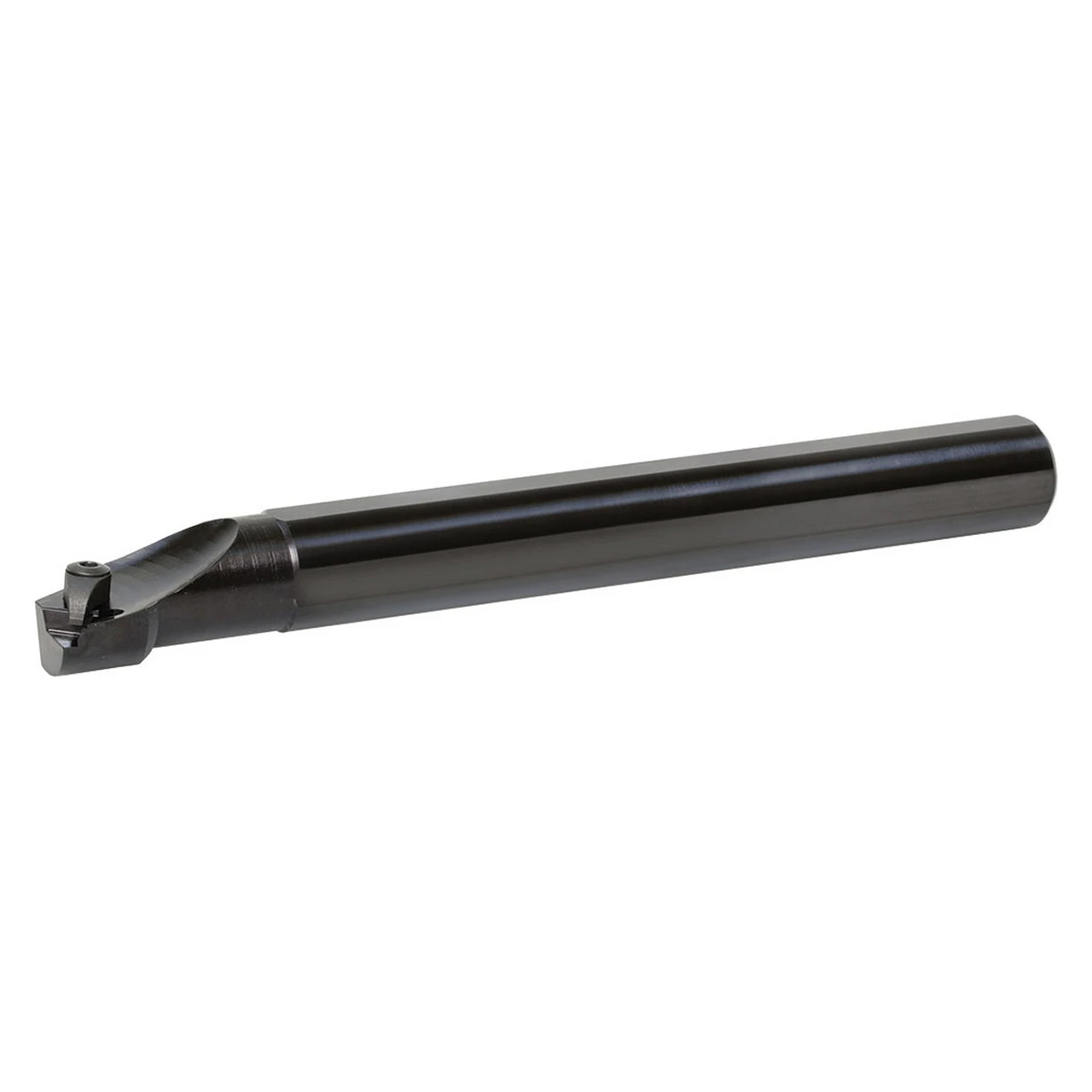

Features:
- ~5 (Axial), -0 (Radial) Rake angle general purpose boring bar
- Great for boring applications
- Compatible with Left-Hand TPMR32, TPGR32, TPM32, TPG32 inserts
Product Specifications
| EDP Number | THC89251 |
| Connection Diameter (Decimal Inch) | 1.0000" |
| Connection Diameter (mm) | 25.40mm |
| Minimum Bore Diameter (Decimal Inch) | 1.3504" |
| Minimum Bore Diameter (mm) | 34.30mm |
| Shank Height (Decimal Inch) | 0.9098" |
| Shank Height (mm) | 23.11mm |
| Tool Entering Angle ( Degree) | 93 Degree |
| Application | Boring |
| Bar Type | Steel Shank |
| Hand | Right Hand |
| Insert Holding Method | Top Clamp |
| Insert Shape | 60 Degree Triangle |
| Material | Steel |
| Rake | Positive |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Toolholder Style:
S...CTUP
Series:
GPBB;Minimum Bore Diameter (Decimal Inch)=1.3504"""
Minimum Bore Diameter (mm):
34.30mm
Hand of Holder:
Right-Hand
Shank Diameter (Decimal Inch):
1.0000"
Shank Diameter (mm):
25.40mm
Through Coolant:
No
