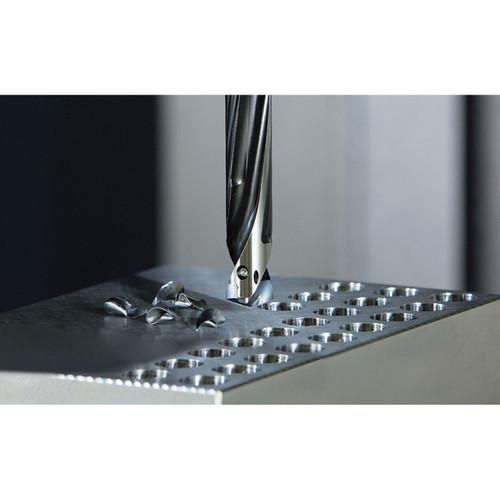

Kyocera Precision Tools THD11298 | SF0750DRA150M8 0.5906-0.6295" Diameter x 5.0390" Usable Length 2 Flute Steel Replaceable Tip Drill

$664.31 $551.38
(You save $112.93)
Brand:
Kyocera Precision Tools
Series:
DRA;Minimum Drill Diameter (Inch)=19/32"
Minimum Drill Diameter (Decimal Inch):
0.5906"
Minimum Drill Diameter (mm):
15.00mm
Maximum Drill Diameter (Inch):
5/8"
Maximum Drill Diameter (Decimal Inch):
0.6295"
Maximum Drill Diameter (mm):
15.99mm
Drill Depth by Diameter Ratio:
8xD
Maximum Drill Depth (Inch):
5-1/32"
Maximum Drill Depth (Decimal Inch):
5.0390"
Maximum Drill Depth (mm):
127.99mm
Toolholder Style:
SF DRA
Through Coolant:
Yes
interval quantity:
1
SKU:
23231922
UPC:
Weight:
0.49 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

  • Low cutting force design improves hole accuracy
  • Optimal web thickness limits deflection
  • Fine chip breaking even in deep hole drilling applications
  • Easy insert replacement
  • Long tool life and stable machining of various workpieces

Product Specifications
EDP NumberTHD11298
Shank Width (Decimal Inch)0.6299"
Cutting Diameter (Decimal Inch)0.5906 - 0.6295"
Cutting Diameter (mm)15.00 - 15.99mm
Cutting Diameter Minimum (Decimal Inch)0.5906"
Cutting Diameter Minimum (mm)15.00mm
Cutting Diameter Maximum (Decimal Inch)0.6295"
Cutting Diameter Maximum (mm)15.99mm
Connection Diameter (Decimal Inch)0.7500"
Connection Diameter (mm)19.05mm
Contact Surface Diameter Machine Side (Decimal Inch)0.9839"
Contact Surface Diameter Machine Side (mm)24.99mm
Usable Length (Decimal Inch)5.0390"
Usable Length (mm)127.99mm
ApplicationDrilling
Coolant Through (Yes/No)Yes
Drill Depth by Diameter Ratio8xD
HandRight Hand
Insert Holding MethodScrew
MaterialSteel
Number of Flutes2
Number of Inserts1
Shank TypeFlange Shank
