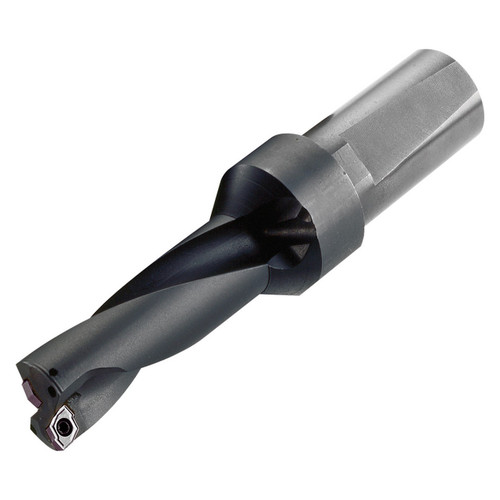

Kyocera Precision Tools THD11808 | S40DRV360M611 1.4173" Diameter x 8.5039" Usable Length 2 Flute Steel Indexable Insert Drill

$1,170.54 $971.55
(You save $198.99)
Brand:
Kyocera Precision Tools
Drill Style:
DRV
Drill Diameter (Decimal Inch):
1.4173
Drill Diameter (mm):
36.00
Maximum Drill Depth (Decimal Inch):
8.5039
Maximum Drill Depth (mm):
216.00
Shank Type:
Standard Length
Shank Diameter (Decimal Inch):
1.5748
Shank Diameter (mm):
40.00
Through Coolant:
Yes
Drill Depth by Diameter Ratio:
6xD
interval quantity:
1
SKU:
23232347
UPC:
Weight:
4.46 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

  • Economical inserts with 4 cutting edges and excellent chip evacuation
  • 2xD to 6xD drilling lineup with 4 chipbreakers for various machining applications
  • High speed and highly efficient machining with the combination of a CVD outer insert and PVD inner insert
  • Excellent hole accuracy with a highly rigid design for better chatter resistance

Product Specifications
EDP NumberTHD11808
Cutting Diameter (Decimal Inch)1.4173"
Cutting Diameter (mm)36.00mm
Cutting Diameter Minimum (Decimal Inch)1.4173"
Cutting Diameter Minimum (mm)36.00mm
Cutting Diameter Maximum (Decimal Inch)1.4173"
Cutting Diameter Maximum (mm)36.00mm
Connection Diameter (Decimal Inch)1.5748"
Connection Diameter (mm)40.00mm
Contact Surface Diameter Machine Side (Decimal Inch)1.9291"
Contact Surface Diameter Machine Side (mm)49.00mm
Usable Length (Decimal Inch)8.5039"
Usable Length (mm)216.00mm
ApplicationDrilling
Coolant Through (Yes/No)Yes
Drill Depth by Diameter Ratio6xD
HandRight Hand
Insert Holding MethodScrew
MaterialSteel
Number of Flutes2
Number of Inserts2
Shank TypeStandard Length
Weldon FlatYes
