Features:

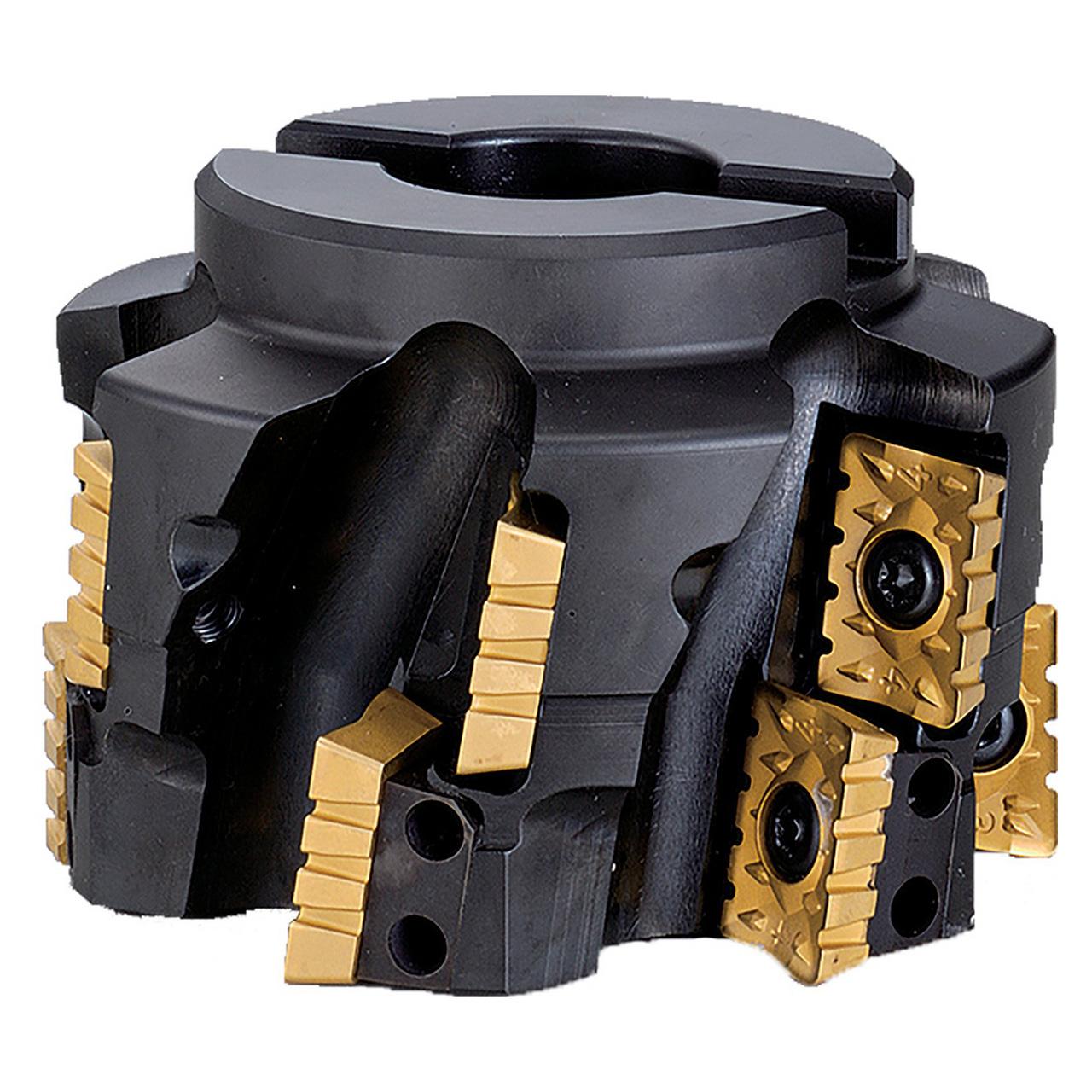

- 90 Degree Lead angle face mill
- Application: facing, shouldering, slotting, heavy milling
- Double the removal rate; double the productivity
- Notched inserts promote larger depths of cut and excellent chip control
- Heavy machining with low cutting forces
Product Specifications
| EDP Number | THN01001 |
| Maximum Depth of Cut (Decimal Inch) | 1.7717" |
| Cutting Diameter (Decimal Inch) | 2.4803" |
| Cutting Diameter (mm) | 63.00mm |
| Cutting Diameter Minimum (Decimal Inch) | 2.4803" |
| Cutting Diameter Minimum (mm) | 63.00mm |
| Cutting Diameter Maximum (Decimal Inch) | 2.4803" |
| Cutting Diameter Maximum (mm) | 63.00mm |
| Cutting Diameter Maximum (mm) | 1.0000" |
| Connection Bore Diameter (mm) | 25.40mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.9685" |
| Contact Surface Diameter Machine Side (mm) | 50.00mm |
| Tool Entering Angle ( Degree) | 2.2441 Degree |
| Application | Facing, Heavy Milling, Shouldering, Slotting |
| Cutter Pitch | Standard Pitch |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 4 |
| Number of Inserts | 8 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
2-31/64"
Cutting Diameter (Decimal Inch):
2.4803"
Cutting Diameter (mm):
63.00mm
Maximum Depth of Cut (Inch):
1-49/64"
Maximum Depth of Cut (Decimal Inch):
1.7717"
Maximum Depth of Cut (mm):
45mm
Arbor Hole Diameter (Inch):
1"
Arbor Hole Diameter (Decimal Inch):
1.0000"
Arbor Hole Diameter (mm):
25.40mm
Series:
MSR;Cutter Style=MSR"
Number of Cutter Inserts:
8
