Features:
- Low cutting force and reduced chattering for high-efficiency milling
- Great for various milling applications
- New PDL025 grade for machining aluminum
- Compatible with (3) BDMT1704, BDGT1704 style inserts
Product Specifications
| EDP Number | THN03520 |
| Maximum Depth of Cut (Decimal Inch) | 0.6181" |
| Cutting Diameter (Decimal Inch) | 1.2598" |
| Cutting Diameter (mm) | 32.00mm |
| Cutting Diameter Minimum (Decimal Inch) | 1.2598" |
| Cutting Diameter Minimum (mm) | 32.00mm |
| Cutting Diameter Maximum (Decimal Inch) | 1.2598" |
| Cutting Diameter Maximum (mm) | 32.00mm |
| Connection Diameter (Decimal Inch) | 0.6693" |
| Connection Diameter (mm) | 17.00mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.1811" |
| Contact Surface Diameter Machine Side (mm) | 30.00mm |
| Shank Height (Decimal Inch) | 0.9449" |
| Shank Height (mm) | 24.00mm |
| Tool Entering Angle ( Degree) | 1.0039 Degree |

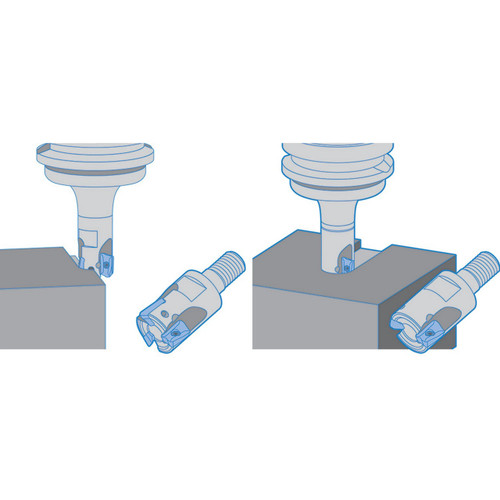

| Application | Facing | Helical Milling | Plunging | Ramping | Shouldering | Slotting |
| Coolant Through (Yes/No) | Yes |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 3 |
| Number of Inserts | 3 |
| Shank Type | Modular Connection |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Series:
MEC;Cutting Diameter (Inch)=1-17/64"""
Cutting Diameter (Decimal Inch):
1.2598"
Cutting Diameter (mm):
32.00mm
Insert Style:
MEC
Maximum Depth of Cut (Inch):
5/8"
Maximum Depth of Cut (Decimal Inch):
0.6181"
Maximum Depth of Cut (mm):
15.7mm
