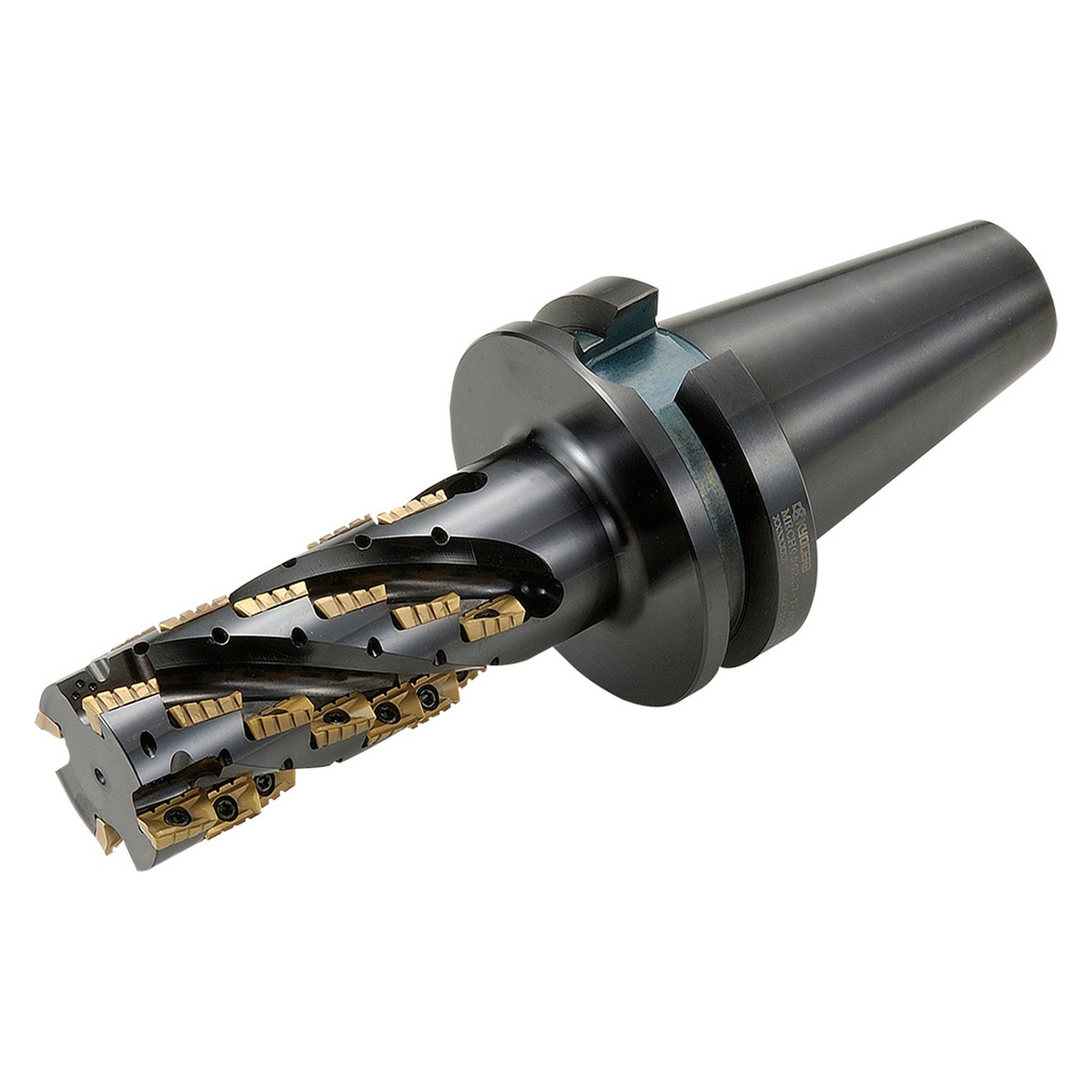

Kyocera Precision Tools THN03979 | MECH100R1776TBT50 3.9370" Diameter x 4.0945" Max Depth of Cut 6 Flute Steel Helical End Mill

$3,527.09
Brand:
Kyocera Precision Tools
Cutting Diameter (Decimal Inch):
3.9370"
Cutting Diameter (Decimal Inch):
100.00mm
Shank Type:
BT50 Integral Arbor
Lead Angle:
90°
Series:
MEC;Through Coolant=No"
SKU:
23233220
Weight:
26.21 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

  • Low cutting force and reduced chattering for high-efficiency milling
  • Great for various milling applications
  • Compatible with: BDMT170408ER-N3, BDMT170408ER-N4 style inserts

Product Specifications
EDP NumberTHN03979
Maximum Depth of Cut (Decimal Inch)4.0945"
Cutting Diameter (Decimal Inch)3.9370"
Cutting Diameter (mm)100.00mm
Cutting Diameter Minimum (Decimal Inch)3.9370"
Cutting Diameter Minimum (mm)100.00mm
Cutting Diameter Maximum (Decimal Inch)3.9370"
Cutting Diameter Maximum (mm)100.00mm
Tool Entering Angle ( Degree)1.5079 Degree
ApplicationFacing | Shouldering
HandRight Hand
Insert Holding MethodScrew
MaterialSteel
Number of Flutes6
Number of Inserts42
Shank TypeBT50 Integral Arbor

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Kyocera Precision Tools
Cutting Diameter (Decimal Inch):
3.9370"
Cutting Diameter (Decimal Inch):
100.00mm
Shank Type:
BT50 Integral Arbor
Lead Angle:
90°
Series:
MEC;Through Coolant=No"
